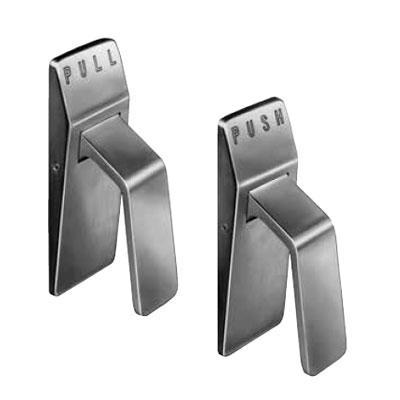

Sargent 24-114P-US26D Hospital Latches for Push-Pull Doors, 2-3/4" Backset, With Push/Pull Trim, Satin Chrome Finish, Handed
The Sargent 24-114P comes in 2 3/4" backset, 4 7/8" or 2 3/4" strike options, and is handed. Right Hand, Left Hand, Left Hand Reverse or Right-Hand Reverse swings. The P in 114 P stands for Push and Pull inscriptions in the push paddles.
Designed for convenience and functionality, the 114 Hospital Latches open with a gentle pull or slight push, making them ideal for hands-free operation in settings like hospitals and nursing care centers. Each is available with “PUSH” and “PULL” stamped into the top of the escutcheon and feature slim tapered paddles for a clean, aesthetic look.
Specifications
| For Doors: |
1-3/4" (44mm) to 2-1/4" (57mm) |
| Backset: |
5" (127mm) standard. For 2-3/4" (70mm) backset (specify as 24-115) and 7" (177mm) backset (specify as 26-115) available on order |
| Strike: |
2-3/4" (70mm) ANSI A115.2 curved lip strike #800
OR
28- 4-7/8" (124mm) ANSI curved lip strike # 808
|
| Bolt: |
Brass, 1/2" (13mm) throw |
| Hand: |
Specify hand (RHR, RH, LHR or LH) |
| 114: |
Push/Pull Paddles - both mounted down position only. Cast; Projection from door 3-1/4" (83mm) |
| Escutcheons: |
Cold drawn; 2-1/2" (64mm) x 6-7/8" (175mm) |
| UL Listed: |
UL Listed for use on fire doors. See Underwriters Laboratories Building Materials List |
