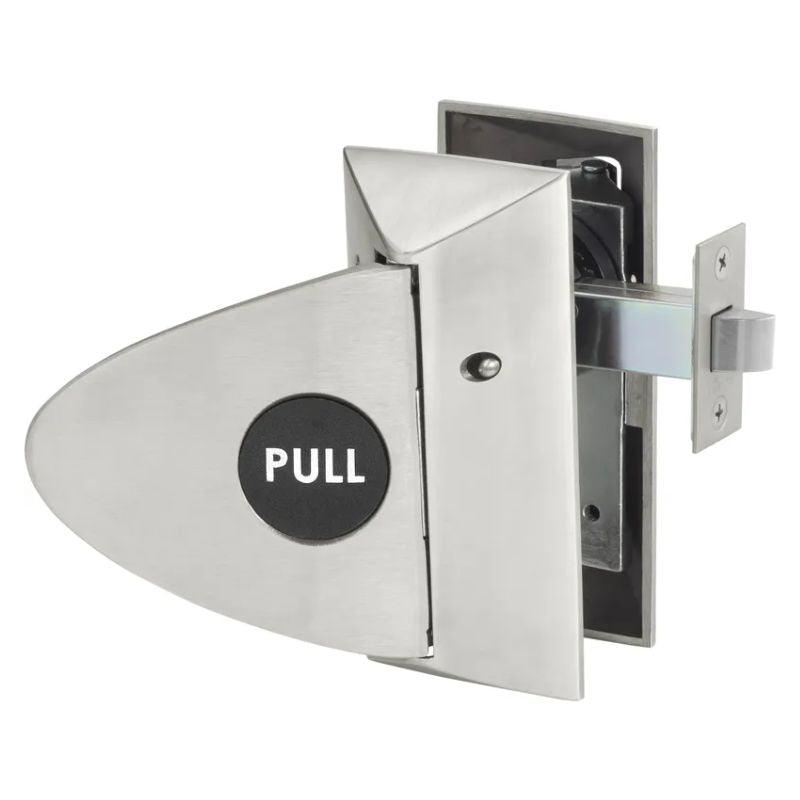

Sargent 24-28-HPU65-P-ALP-US32D Push/Pull Privacy Lock, 2-3/4" Backset, 4 7/8 ASA Strike, Labeled Push/Pull, HP Series Healthcare Hardware, 630 Satin Stainless Steel

The Sargent 24-28-HPU65-P-ALP-US32D Push/Pull Privacy Lock is an essential component of the HP Series Healthcare Hardware, featuring a 2-3/4" backset and a 4 7/8 ASA strike. This lock is labeled for easy use with a push and pull function, providing security and privacy. Crafted from durable 630 satin stainless steel, this lock is a reliable and functional choice for healthcare facilities.

HPU65 Privacy Function:

• I/S paddle always retracts the latch

• O/S paddle retracts latch, except when locked by the inside push button

• Closing door unlocks the outside paddle

• Includes emergency release

• Ideal for bathrooms

• Vertical orientation required

Features:

• Paddle trim can be mounted in horizontal (up or down) or vertical (sideways) orientations in the field
• Easy installation
• 15 function trim is non-handed; lock body is easily field reversible
• Through-bolted trim for stability
• Available in 5" backset standard
• ANSI/BHMA Grade 1
• UL Fire Rating standard on doors up to 4' x 8'
• Torx ® and spanner screws optional with ALP
• Lead lining is optional: specify 74- option
• Covers and paddles are cast stainless steel or brass
• Patent Pending
