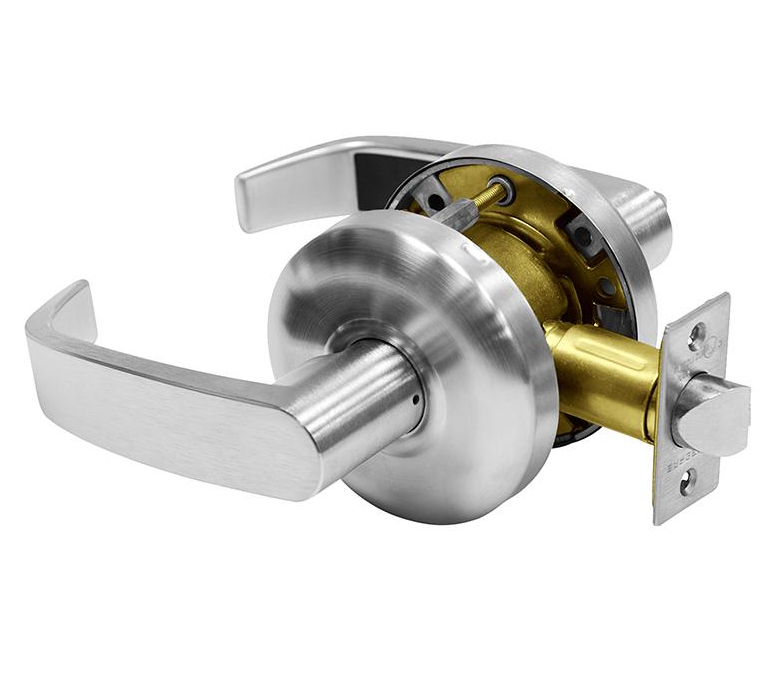

Sargent 65U15 Cylindrical Lever Lock Passage Function, K Rose 3-3/8" Diameter, L Lever, Optional Finishes
Passage Function:
• Latch by either lever
• ANSI/BHMA F75
6500-Line Bored Lever Locks
Windstorm certified and has several function options. The SARGENT 6500 Line is a standard duty key-in-lever lock designed to exceed the requirements of ANSI A156.2 Series 4000 Grade 2.
- For Doors: 1-3/8" (35mm) to 1-3/4" (44mm) only
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional (20- Prefix)
- Cylindrical Housing: Steel zinc dichromate finish
- Front: Wrought brass and stainless steel;
- 2-1/4" (57mm) x 1-1/8"(29mm)
- Strike: 600 Curved Lip, Brass or Stainless Steel Standard, 808 ANSI Curved Lip available (28- prefix), 505 Full Lip strike available (14- prefix)
- Hand: Universal, not handed
- Latch: Brass 1/2" (13mm) throw
- Keys: Two, nickel silver
- Cylinder: Brass, 6 pins, LA keyway standard
- Finishes : 3, 4, 10, 10B, 26, 26D
- (No Split Finish)
- Door Prep: ANSI A115.2 (161) Modified
- Minimum Stile: 4-1/2" (114mm)
