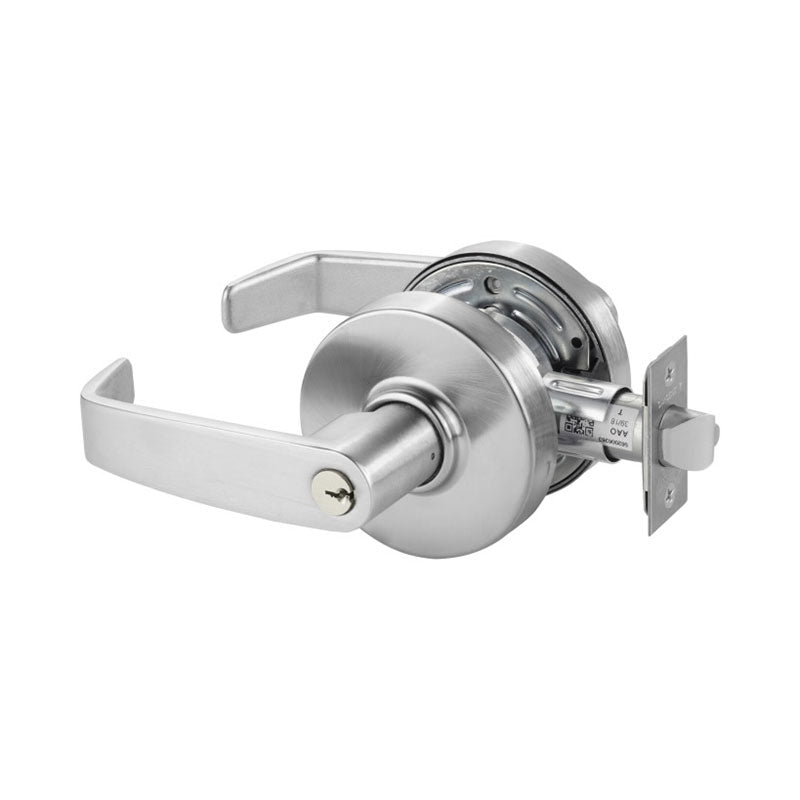

Sargent 28-7G04-LL Storeroom or Closet Cylindrical Lever Lockset, LA Keyway, L Rose, L Lever, Grade 2

  • SKU: 287G04LLUS26D

Sargent 28-7G04-LL Storeroom or Closet Cylindrical Lever Lockset, LA Keyway, L Rose, L Lever, Grade 2

  • SKU: 287G04LLUS26D
Sale price$251.08/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US26D Satin Chrome (626)
Visa Mastercard American Express Discover Shop Pay Apple Pay

The Sargent 28-7G04-LL is a storeroom or closet function cylindrical lever lockset that is Grade 2, comes with a Standard LA Keyway, an L Rose, with a L Lever, and comes in a variety of finishes.

7-Line Bored Lever Locks

Sargent's 7 Line Bored Lever Locks are designed with a solid feel and a precise lever action.

A key-in-lever lock designed for standard-duty commercial exterior and interior doors in offices, commercial interiors, medical clinics, government facilities, and public buildings. Exceeds ANSI/BHMA A156.2 Standards for cycling and durability.

  • For Doors: 1-3/4" (44mm) Thick Door standard Specify 1- for 1-3/8" (35mm) Thick Door
  • Backset: 2-3/4" (70mm) Backset standard. Specify 20- for 2-3/8" (60mm) Backset
  • Cylindrical Housing: Steel, zinc dichromate finish
  • Front: Wrought brass or stainless steel; Standard — 2-1/4" (57mm) x 1-1/8" (29mm), with 2-3/4" (70mm) backset Specify 20- for 2-1/4" (57mm) x 1" (25mm), with 2-3/8" (60mm) backset
  • Strike: Wrought brass or stainless steel 2-3/4" Curved Lip Strike standard 4-7/8" Curved Lip (28-) and 2-1/4" Full Lip (14-) Strikes Optional
  • Hand: Non-handed — B, L, P lever designs Handed — G and Y Coastal Series lever designs
  • Latch: Brass 1/2" (13mm) throw
  • Keys: Two, nickel silver
  • Cylinder: Brass, 6-pin, LA keyway standard Can be master keyed or grand master keyed
  • Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL 14, 15, 20D, 26 & 26D
  • Door Prep: ANSI A115.2; Specify 20- for 160 Prep
Manufacturer Sargent
Grade Grade 2
Installation Commercial
Origin United States
Unit of Measure Each
Base Material Brass
UL Listing Type ANSI A156.2, Series 4000, Grade 2, UL Listed
ANSI Number F109
Limited Warranty 5 Year Warranty
Fire Rated 3 Hours {A}
Burglar Rated No
Function 04 Storeroom or Closet
Function Family Storeroom
ANSI Function F86 - Storeroom
Lever/Knob Design L Lever
Rose/Escutcheon Design 3-3/8" Rose Diameter
Rose/Escutcheon Dimensions 3-3/8"
Cylinder Type Conventional Cylinder
Num Pins 6
Key(s) Cut
Num of Keys 2
Handing Non-handed
Door Thickness 1 3/4"
Std. Latch Number 193762
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2 3/4"
Latch Bore Diameter 7/8"
Lock Face Size 1 1/8" x 2 1/4"
Bolt Projection 1/2"
Bore Hole Diameter 2 1/8"
Std. Strike Number 808
Std. Strike Type ANSI Curved Lip Strike
Std. Strike Height 4 7/8"
Std. Strike Width 1 1/4"
Dust Box None
Screws Wood/Machine Screws
Product Type Cylindrical Lock
