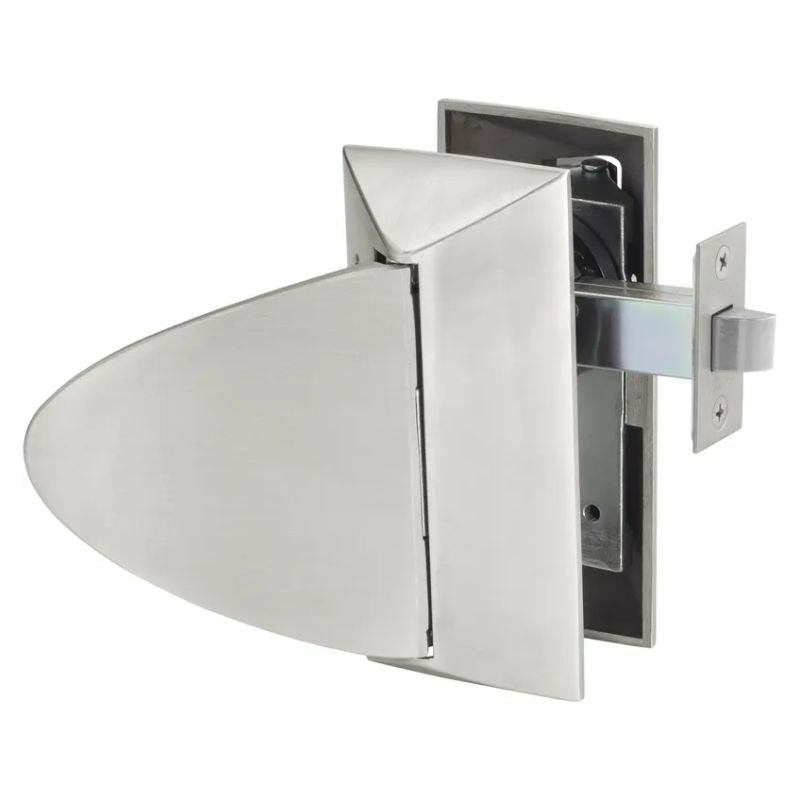

Sargent 28-HPU65-ALP-US32D Push/Pull Privacy Lock, 5" Backset, 4 7/8 ASA Strike, No Push/Pull Label, HP Series Healthcare Hardware, 630 Satin Stainless Steel

The Sargent 28-HPU65-ALP-US32D privacy lock offers a 5" backset and 4 7/8 ASA strike for secure locking. With no push/pull label, the HP Series Healthcare Hardware features a sleek and modern design. Built with 630 satin stainless steel, this lock is both durable and stylish.

HPU65 Privacy Function:

• I/S paddle always retracts the latch

• O/S paddle retracts latch, except when locked by the inside push button

• Closing door unlocks the outside paddle

• Includes emergency release

• Ideal for bathrooms

• Vertical orientation required

Features:

• Paddle trim can be mounted in horizontal (up or down) or vertical (sideways) orientations in the field
• Easy installation
• 15 function trim is non-handed; lock body is easily field reversible
• Through-bolted trim for stability
• Available in 5" backset standard
• ANSI/BHMA Grade 1
• UL Fire Rating standard on doors up to 4' x 8'
• Torx ® and spanner screws optional with ALP
• Lead lining is optional: specify 74- option
• Covers and paddles are cast stainless steel or brass
• Patent Pending
