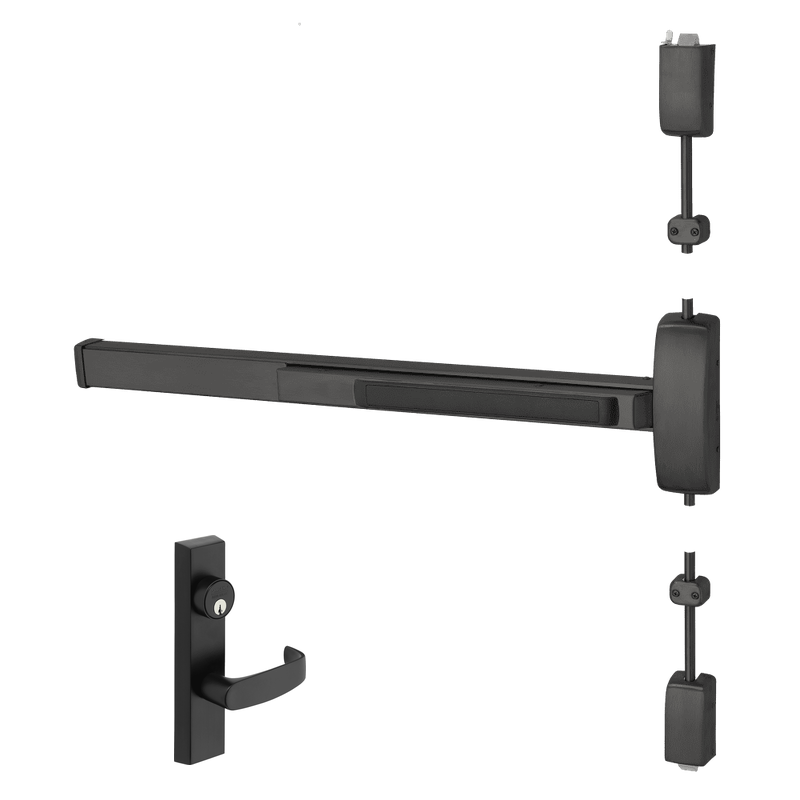

Sargent 31-8713-E-ETL-84-BSP Surface Vertical Rod Exit Device, Classroom, For 24-32" Width, 84" Ht Door, BSP Black Suede Powder Coat

The Sargent 31-8713-E-ETL-84-BSP is a Grade 1 surface vertical rod exit device engineered for demanding classroom applications on doors measuring 24" to 32" wide and up to 84" in height. Part of Sargent's heavy-duty 80 Series, this device combines reliable panic egress with classroom (E) function, allowing secure access control from the outside through the ETL escutcheon trim. The durable BSP Black Suede Powder Coat finish delivers a clean, modern look while standing up to high-traffic educational and institutional environments. Built to UL standards and ANSI-rated for longevity, it provides dependable life-safety performance where security and code compliance are essential.

Features

• Grade 1 surface vertical rod exit device suited for high-use classroom and institutional doors.
• Sized for doors 24" to 32" wide and 84" in height.
• Classroom (E) function with keyed outside trim for controlled access.
• ETL escutcheon trim provides a durable lever handle for exterior operation.
• Finished in BSP Black Suede Powder Coat for a refined, wear-resistant appearance.
• Surface-mounted top and bottom rods secure the door at the frame head and threshold.

Functional Details

The classroom (E) function allows free egress at all times through the push rail. The outside lever is controlled by a key, so authorized users can retract the latch for entry while the door remains securely latched when locked.

• Latchbolt operated by lever from outside unless locked by key outside.
• Latchbolt always operated by exit device from inside.
• Key outside locks or unlocks outside lever.

Arm Type Details

This is a surface vertical rod configuration, with exposed rods running along the door face to top and bottom latch points. When the push rail is depressed, both the top and bottom latchbolts retract simultaneously to release the door for immediate egress.

Included Components

The device ships with the 8713 surface vertical rod chassis, ETL escutcheon exterior trim, top and bottom latch assemblies, and the required mounting hardware for installation.
