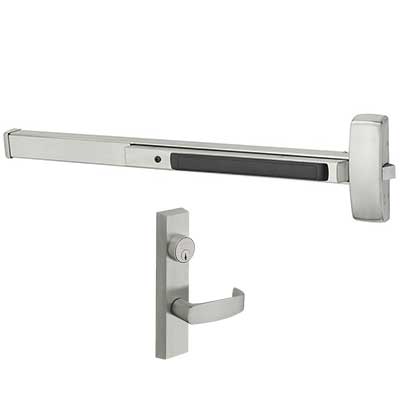

Sargent 55-12-8813-G-ETL Fire Rated Rim Exit Device, (55) Request-to-Exit, Key Locks/Unlocks Lever, 43"-48" Bar, ETL Trim

  • SKU: 55128813GETLUS32DLHR

Sargent 55-12-8813-G-ETL Fire Rated Rim Exit Device, (55) Request-to-Exit, Key Locks/Unlocks Lever, 43"-48" Bar, ETL Trim

  • SKU: 55128813GETLUS32DLHR
Sale price$1,646.92/ea
In Stock
In Stock
Finish: US32D Satin Stainless Steel (630)
Core Option: KD - Sargent Fixed Core LA Keyway Keyed Different with 2 Change Keys per Lock
Handing: LHR - Left Hand Reverse

The Sargent 55-12-8813-G-ETL  is a (12) Fire Rated Rim Exit, with (55) Device Request-to-Exit Key Locks/Unlocks Lever Trim, is"G" 43-48" for Door Width, and with an ETL trim, Ideal For Commercial and Institutional Facilities.


8800 Series Rim Exit Devices

The 8800 series is designed for standard width stile applications on wood and metal doors.

The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent's full line of exit devices.

Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.

Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Features:

  • Single point rim latching device
  • Single door & double door applications with mullions
  • Quiet operation and solid security
  • Devices are ANSI A156.3 - Grade 1
  • UL Fire and Panic listed

SARGENT (55)Request-to-Exit Signal Switch Exit Devices provides push rail monitoring for a variety of applications; such as sounding an alarm, initializing a delayed egress system, or de-energize an electromagnetic lock.



Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance No
Finish 630/US32D
Finish Description Satin Stainless Steel
Finish Family Matte Silver



Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Classroom
Device Length 48"
Includes Cylinder(s) Optional
Minimum Stile Size 4-3/4"
Door Material Metal or Wood
Door Width 43" to 48"
Door Thickness 1-3/4" - 2-1/4"
Fire Rated Yes
Reversible Yes
Product Type Rim Exit Devices







Panic Handing Chart
