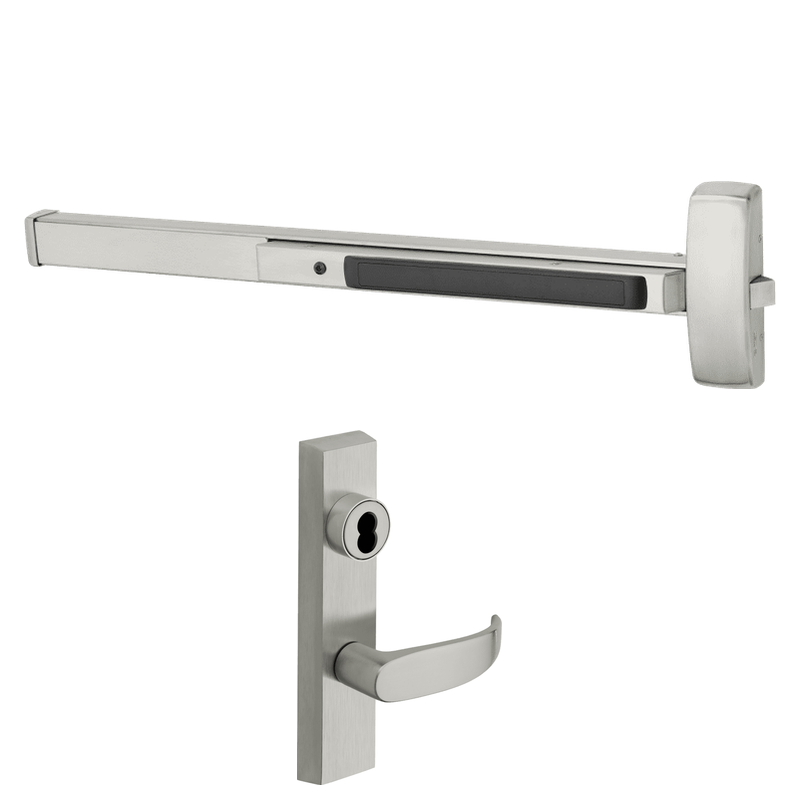

Sargent 55-70-8876-F-ETP-12V-US32D Electrified Rim Exit Device, Fail Secure Power Off Locks Lever, Request To Exit, For 33-36 Inch Width Door, SFIC, Less Core, Hex Key Dogging, 630 Satin Stainless Steel

The Sargent 55-70-8876-F-ETP-12V-US32D is an electrified rim exit device built for secure, high-traffic openings that require controlled access and reliable egress. Designed for doors measuring 33 to 36 inches wide, it operates as a fail secure device, meaning the outside lever locks when power is removed, keeping the opening secure during power loss while still allowing free exit from inside. The integrated Request to Exit (RX) switch signals access control systems when the device is used, and the ETP electrified trim provides lever-controlled entry. Equipped with a Small Format Interchangeable Core (SFIC) housing shipped less core and hex key dogging, it finishes in durable 630 Satin Stainless Steel.

Features

• Electrified rim exit device engineered for commercial and institutional doors.
• Fail secure operation locks the outside lever when power is removed for security during power interruptions.
• Built-in Request to Exit (RX) switch monitors device activation for access control integration.
• ETP electrified lever trim allows controlled entry from the outside.
• Sized for doors 33 to 36 inches in width.
• Operates on 12V power for compatibility with common access control systems.
• Small Format Interchangeable Core (SFIC) prep shipped less core for field keying flexibility.
• Hex key dogging holds the pushbar depressed for push/pull operation during open hours.
• Finished in 630 Satin Stainless Steel for corrosion resistance and lasting appearance.

Functional Details

In fail secure mode, removing power locks the outside lever while the pushbar always permits free egress. The Request to Exit feature provides a monitoring signal so access control systems recognize legitimate exits and bypass alarm conditions.

• Request to Exit (RX) switch provides monitoring of the push pad.
• Fail secure electric latch retraction and lever control.
• Factory installed in the device head.
