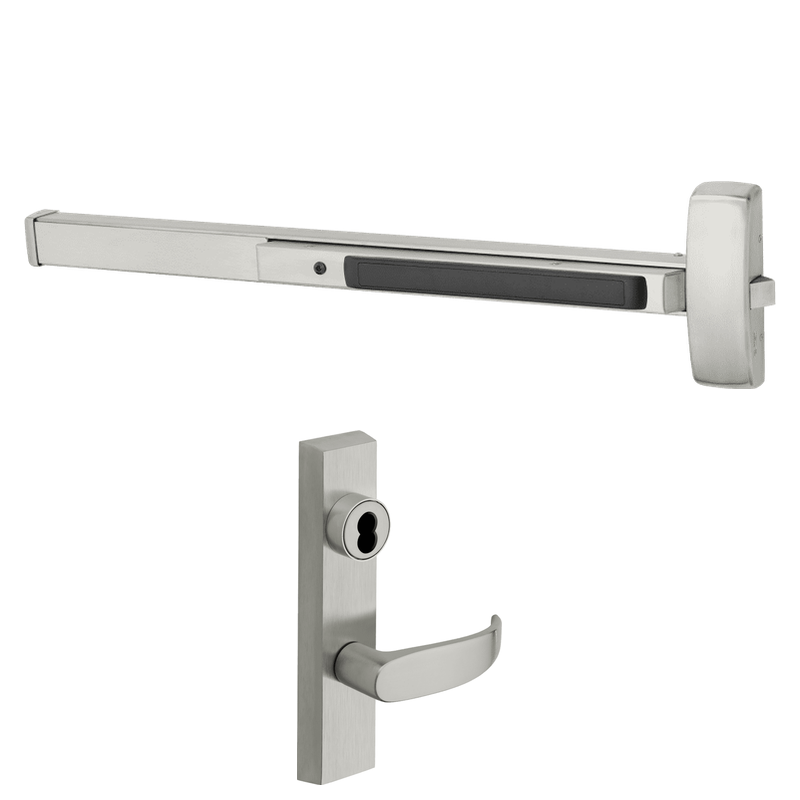

Sargent 55-70-8876-F-ETP-24V-US32D Electrified Rim Exit Device, Fail Secure Power Off Locks Lever, Request To Exit, For 33-36 Inch Width Door, SFIC, Less Core, Hex Key Dogging, 630 Satin Stainless Steel

The Sargent 55-70-8876-F-ETP-24V-US32D is an electrified rim exit device built for high-traffic commercial openings that demand reliable, controlled egress. Operating on 24V DC with a fail secure configuration, this unit locks the outside lever when power is removed, keeping the door secured during power loss while allowing free exit from the inside at all times. It fits doors ranging from 33 to 36 inches wide and features an ETP electrified exit trim with lever handle, a small format interchangeable core (SFIC) prep shipped less core, Request to Exit signaling, and convenient hex key dogging. Finished in Satin Stainless Steel (US32D/630), it combines durability with a clean, professional look.

Features

• Fail secure operation locks the outside lever when power is removed, maintaining security during power failure.
• Request to Exit (REX) switch signals the access control system when the device is operated from the secure side.
• Electrified ETP lever trim provides controlled access on the exterior while allowing free egress from the interior.
• Hex key dogging holds the latch retracted for push/pull operation during peak traffic periods.
• Small format interchangeable core (SFIC) preparation, shipped less core for field keying flexibility.
• Sized for doors 33 to 36 inches wide for broad commercial compatibility.
• Durable Satin Stainless Steel (US32D/630) finish resists wear in demanding environments.

Functional Details

The 8876 fail secure function keeps the outside lever locked when power is off, requiring valid access control authorization or a key to enter, while the inside push bar always permits immediate egress. The integrated Request to Exit switch communicates with the building's access control system each time the device is actuated.

• Request to Exit (REX) signal is generated when the touchpad is depressed.
• Fail secure: outside trim locks when power is removed.
• Free egress at all times from the inside.
