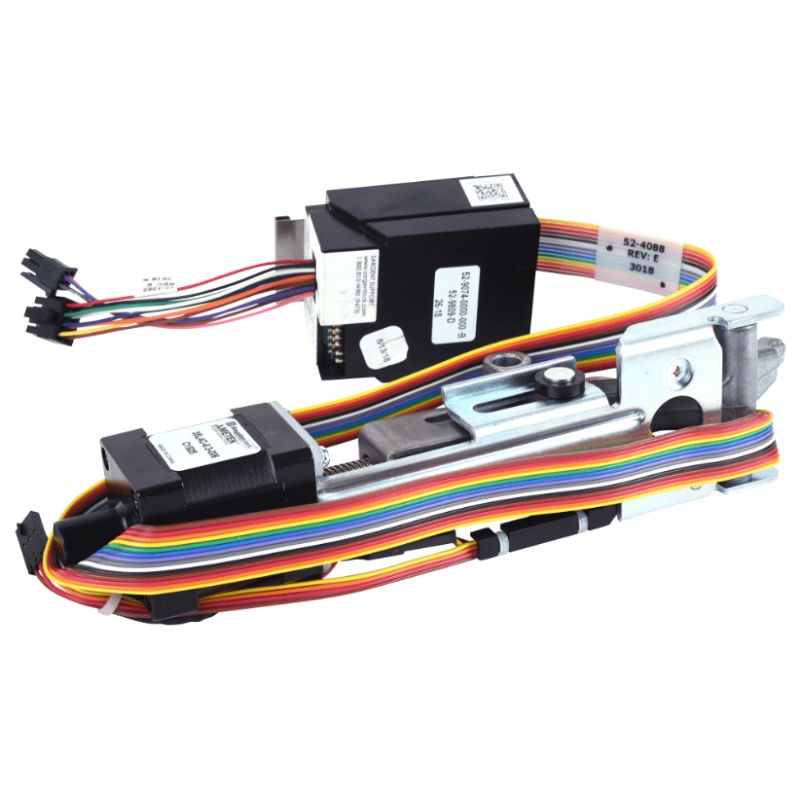

Sargent 55-M56AF Electric Latch Retraction Retrofit Motor Kit, With Signal Switch, F-Rails 33-36" Device, For 80 Series Exit Devices, More Details See Document Center

The Sargent 55-M56AF Electric Latch Retraction Retrofit Motor Kit, with Signal Switch, is designed for use with 33-36" F-Rail devices in the 80 Series Exit Devices. This motor kit provides reliable and efficient retrofitting for latch retraction, allowing for smooth and secure operation of the exit device.

Feature Available: 55- Non-Contact Request to Exit switch

• Motor driven electric retraction for smooth precise operation.
• Retrofits standard mechanical rail.
• M56AF - for doors 33-36"
• Retrofit Kits can only be added to 80 Series exit devices manufactured after 2006
  & P series exit device. not available on FM8700 Series exit devices.
• Amount of rail retraction is automatically controlled by the 56- circuitry; System actively monitors its position and adjusts itself
• Digital retraction timer (0-20 seconds; factory setting is 5 seconds.
• Can be used for continuous and intermittent use.
• Power Requirements: 24VDC regulated/filtered power supply.
• Current draw: .6A during retraction and .25A maintained in dogged hold position.
• Requires 1A at 24VDC regulated/filtered power supply.

M56A Is compatible with:

• 8800 Series Rim Exit Devices
• 8900 Series Mortise Exit Devices
• 8700 Surface Vertical Rod Exit Devices
• 8600 Series Concealed Vertical Rod Exit Devices
• 8500 Narrow Design Rim Exit Devices
• 8300 Narrow Design Mortise Exit Devices
• 8400 Narrow Design Concealed Vertical Rod Exit Devices
