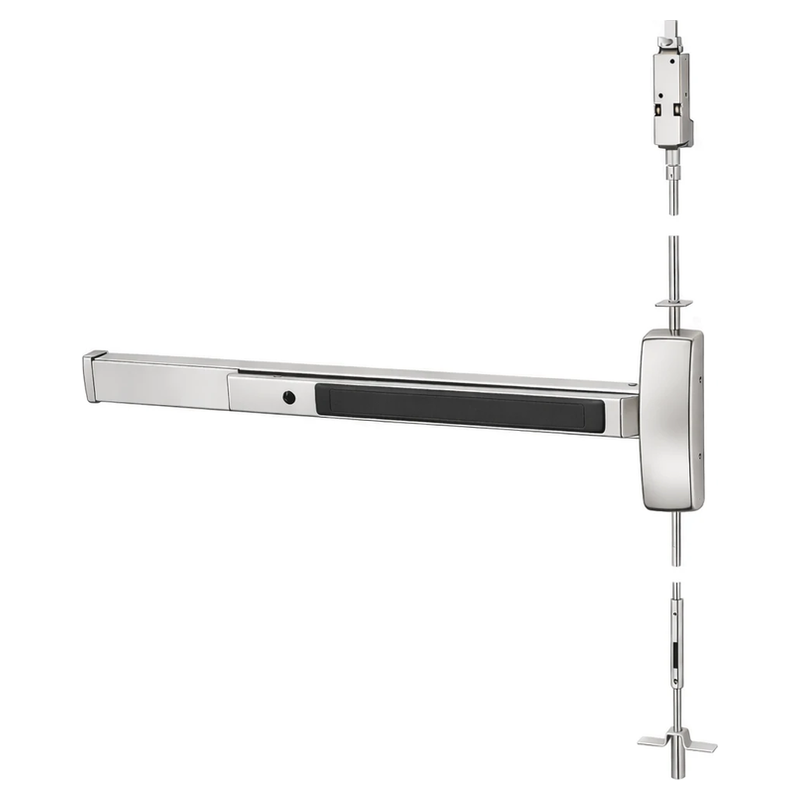

Sargent 5556ADPE8610F-EO-84-US32D Electrified Concealed Vertical Rod Exit Device, Exit Only, For 33-36" Wd, 84" Ht Door, Request To Exit

The Sargent 5556ADPE8610F-EO-84-US32D is a heavy-duty electrified concealed vertical rod exit device engineered for secure, high-traffic commercial openings. Configured for exit-only operation, it fits doors measuring 33" to 36" wide and 84" tall, with concealed top and bottom rods that keep the mechanism out of sight for a clean appearance. The built-in Request to Exit (RX) switch signals access control and alarm systems when the device is activated, making it well suited for monitored and secured entrances. Finished in US32D satin stainless steel, it combines durability with a professional look that holds up in demanding institutional and commercial environments.

Features

• Concealed vertical rod design conceals the latching mechanism within the door for a streamlined appearance.
• Exit-only (EO) function provides free egress from the inside with no outside trim.
• Request to Exit (RX) switch monitors device operation for integration with access control systems.
• Sized for 33" to 36" wide and 84" tall doors.
• Grade 1 construction built for heavy-duty, high-frequency use.
• US32D satin stainless steel finish resists wear and corrosion.

Functional Details

The Request to Exit feature uses an internal switch that activates when the push pad is depressed, sending a signal to the access control or alarm system to indicate an authorized exit and shunt the door alarm.

• Request to Exit (RX) signaling for integration with access control and monitoring systems.
• Exit-only configuration with no outside operation.
• Electrified concealed vertical rod latching at top and bottom.
