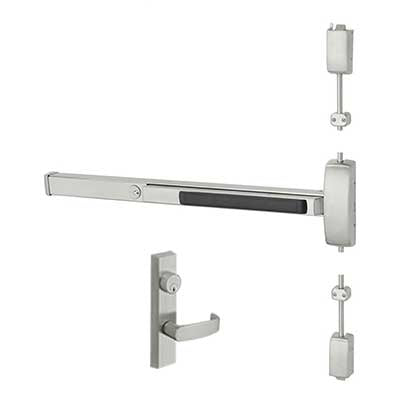

Sargent 56-12-8713-G-ETL-84 Fire Rated Surface Vertical Rod Exit Device, (56) Electric Latch Retraction, ETL Trim, 84" Dr Height, 43"-48" Dr Widths

  • SKU: 56128713G84ETLUS32DLHR

Sargent 56-12-8713-G-ETL-84 Fire Rated Surface Vertical Rod Exit Device, (56) Electric Latch Retraction, ETL Trim, 84" Dr Height, 43"-48" Dr Widths

  • SKU: 56128713G84ETLUS32DLHR
Sale price$2,784.18/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Core Option: KD - Sargent Fixed Core LA Keyway Keyed Different with 2 Change Keys per Lock
Handing: LHR - Left Hand Reverse

Sargent 56-12-8713-G-ETL-84 Surface Vertical Rod Fire Rated Exit Device has an ETL Lever trim, Key Locks Or Unlocks Outside Lever, and Electric Latch Retraction has an 84" door height rod comes with 43"-48" rail length and is Ideal For Commercial And Institutional Facilities.

8700 Series Surface Vertical Rod Exit Devices

Has two-point latching and is adjustable through the center case.

Part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics, and innovation. The top and bottom latch bolt projection is adjustable through the center case.

  • Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- prefix.  4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
  • Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No



Physical Appearance Wide Stile Pushpad
Device Type Surface Vertical Rod
Mechanical Function Lever Classroom
Device Length 48"
Hand RHR OR LHR
Top Strike 646
Strike Bottom 655
Includes Trim Yes, ETL
Minimum Stile Size 4-1/2" with Trim, 3-1/2" without Trim
Door Material Metal or Wood
Door Width 43" - 48"
Door Height 84 In.
Door Thickness 1-3/4" to 2-1/4"
Fire Rated Yes
Product Type Surface Vertical Rod Exit Devices

Panic Handing Chart
