Description

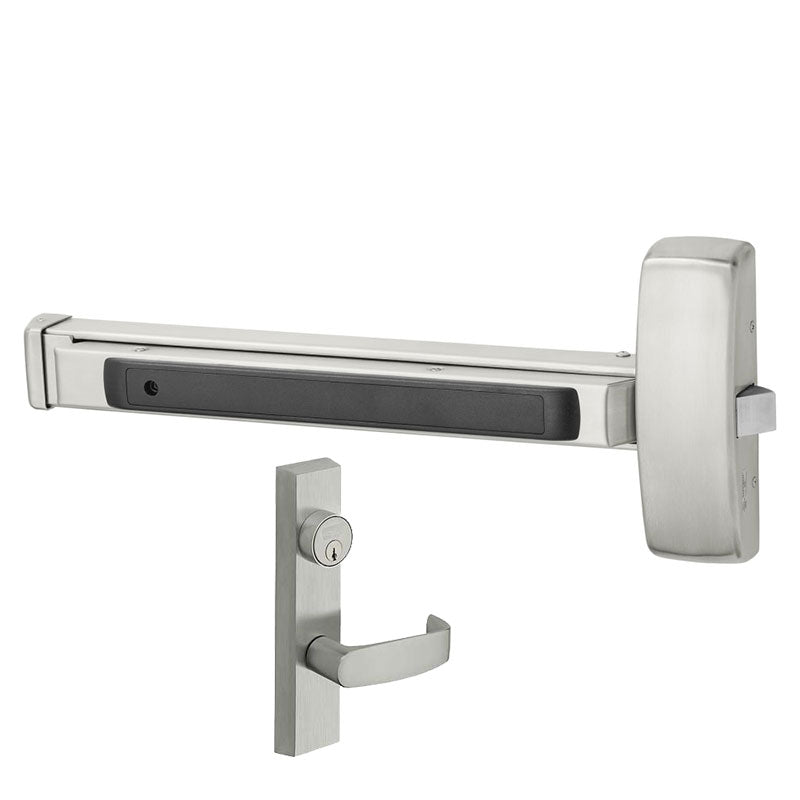

The 56-12-8813-E-ETL Fire Rated Rim Exit Device features a 56 Electric Latch Retractor, Key Outside Unlocks/Locks Lever Function, and comes with an ETL trim in both US32D and US10B finishes. It has a 24"-32" bar and is in Grade 1.
8800 Series Rim Exit Devices
The 8800 series is designed for standard-width stile applications on wood and metal doors.
The 8800 Series is a reversible rim exit device that sets the industry standards for durability and reliability. It is part of Sargent's full line of exit devices.
Door Types: Wood or metal 1 3/4"(44mm) Thick Door; Over 1 3/4" specify thickness and order as a 31- prefix.
Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
Features:
- Single point rim latching device
- Single door & double door applications with mullions
- Quiet operation and solid security
- Devices are ANSI A156.3 - Grade 1
- UL Fire and Panic listed
SARGENT Electric Latch Retraction exit device is the perfect choice for high-traffic egress doors that require access control. This non-handed exit device rail is durable and easy to install. It utilizes a latch retraction motor rather than a solenoid, ensuring quiet operation ideal for locations such as conference rooms, theaters, and libraries. Once retracted, the door functions in a push/pull manner. The 56-exit device can be dogged for momentary ingress and egress and is commonly used in conjunction with an automatic door operator. The device can be dogged continuously on fire-rated devices that are tied into the building fire detection system.
Product Specs
| Manufacturer | Sargent |
| SKU | 12-8813E |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | No |
Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Classroom |
| Device Length | 32" |
| Hand | LHR or RHR |
| Dogging Options | Less Dogging |
| Includes Trim | Yes |
| Trim Type | ETL |
| Includes Cylinder(s) | Optional |
| Minimum Stile Size | 4 3/4" |
| Door Material | Metal or Wood |
| Door Width | 24" to 32" |
| Door Thickness | 1 3/4" - 2 1/4" |
| Fire Rated | Yes |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
