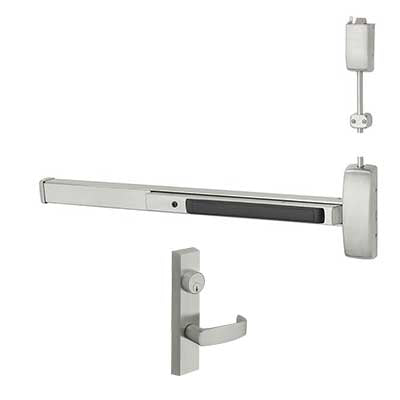

Sargent 56-12-NB-8713-G-ETL-84 Fire Rated Surface Vertical Rod Exit Device, (56) Electric Latch Retraction, Less Bottom Rod, ETL Trim, 84” Dr Height, 43"-48" Dr Widths
Sargent 56-12-NB8713-ETL-G-84 Top Latch Surface Vertical Rod Fire Rated Exit Device has ETL Lever trim, Key Locks Or Unlocks Outside Lever. The Sargent 56-12-NB8713-RTL-84 has Electric Latch Retraction and is Fire Rated. The 56-12-NB8713-F-ETL-84 is Grade One and has an 84" high rod and a 43"-48" rail length making it Ideal For Commercial And Institutional Facilities.
NB8700 Series Surface Vertical Rod Exit Devices
The NB8700 Series is a top latch surface vertical rod exit device.
The NB8700 Series is part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics, and innovation. This series has both rated and non-rated openings.
Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- Prefix; 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
