Sargent 56-64-PE8504F-862-US32D Electrified Narrow Stile Rim Exit Device, Night Latch, For 33-36" Dr Widths, LFIC Temporary Core

The Sargent 56-64-PE8504F-862-US32D is an electrified narrow stile rim exit device built for high-traffic commercial openings that demand reliable security and controlled access. Designed for aluminum and narrow stile doors measuring 33" to 36" wide, this device pairs a slim profile with heavy-duty performance. It features night latch function with an exterior pull trim, electric latch retraction for integration with access control systems, and a Sargent LFIC housing with a temporary core for added flexibility during installation. Finished in US32D (satin stainless steel), it offers a clean, durable look suited to modern storefronts and institutional entrances.

Features

• Narrow stile rim exit device engineered for aluminum and narrow frame doors.
• Electric latch retraction (56- prefix) allows remote unlocking and access control integration.
• Night latch (NL) function provides keyed entry from the exterior while remaining free egress inside.
• Fits door widths from 33" to 36".
• Includes PE8504F exit device with 862 night latch trim.
• Equipped with a large format interchangeable core (LFIC) housing and temporary core.
• Fire-rated (F) construction for code-compliant fire door assemblies.
• US32D satin stainless steel finish for corrosion resistance and lasting appearance.

Functional Details

The night latch function allows building occupants to exit freely at all times by pushing the touchbar, while entry from the exterior requires a key. With the 56- electric latch retraction option, the latch can be retracted electrically through an access control system, enabling momentary or sustained unlocked access without mechanical operation of the trim.

• Night latch (NL): key retracts latch for entry.
• Free egress at all times via push of the touchbar.
• Electric latch retraction for remote dogging and access control.

Included Components

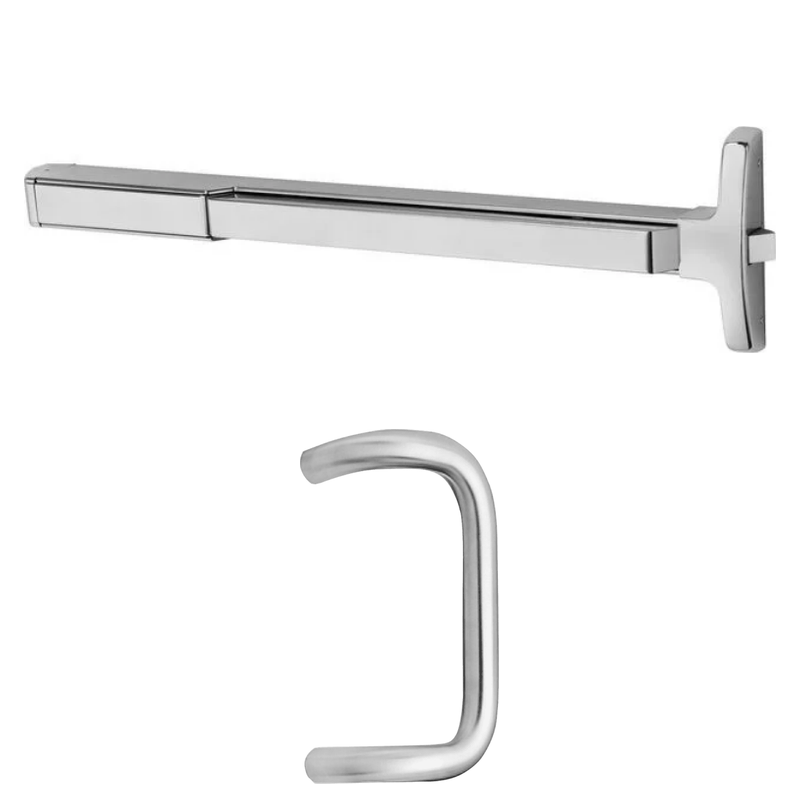

This assembly ships with the PE8504F electrified rim exit device, the 862 night latch exterior pull trim, and the LFIC housing with a temporary core to facilitate keying at installation.
