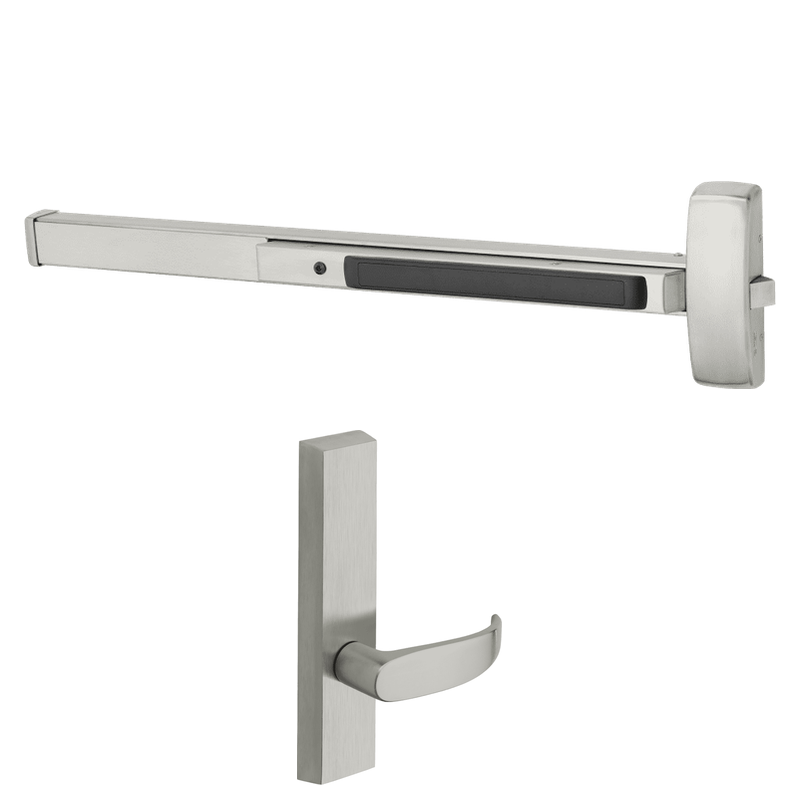

Sargent 56-8873-G-ETP-24V Electrified Rim Exit Device, Electric Latch Retraction, Fail Safe Power Off Unlocks Lever, For 43-48 Inch Width Door, Hex Key Dogging

The Sargent 56-8873-G-ETP-24V is a heavy-duty electrified rim exit device built for high-traffic commercial openings that require remote access control. Designed for doors ranging from 43 to 48 inches wide, this Grade 1 device combines electric latch retraction (ELR) with a fail-safe electrified lever trim, meaning the lever unlocks on power loss to support safe egress and controlled entry. The 24V motorized latch retraction allows smooth, quiet remote dogging and integration with access control systems, while hex key dogging provides mechanical hold-open when needed. With its durable construction and ETP lever trim, this exit device delivers dependable security and reliable daily performance.

Features

• Electric latch retraction (ELR) powered by a 24V motor for quiet, remote operation.
• Fail-safe design unlocks the lever trim when power is removed, allowing controlled entry during power loss.
• Sized for wide doors measuring 43 to 48 inches.
• Hex key dogging holds the latch retracted for push/pull operation.
• ETP electrified lever trim provides secure outside access control.
• Grade 1 rim exit device engineered for demanding commercial environments.

Functional Details

The 56-8873 operates as an electrified rim exit device with motorized latch retraction. When energized, the motor retracts the latch for remote access, and the fail-safe trim releases the lever when power is interrupted, ensuring entry remains possible during outages. The hex key dogging option allows the device to be mechanically held in a retracted state for free passage.

• Electric Latch Retraction (ELR): motor retracts the latchbolt for remote unlocking and momentary or sustained operation.
• Fail Safe: power off unlocks the outside lever for entry.
• 24V DC operation.

Arm Type Details

This unit uses ETP lever trim, an electrified outside trim configuration. The lever controls outside access and, in the fail-safe mode, returns to an unlocked state when power is removed, while the inside push rail always allows free egress.
