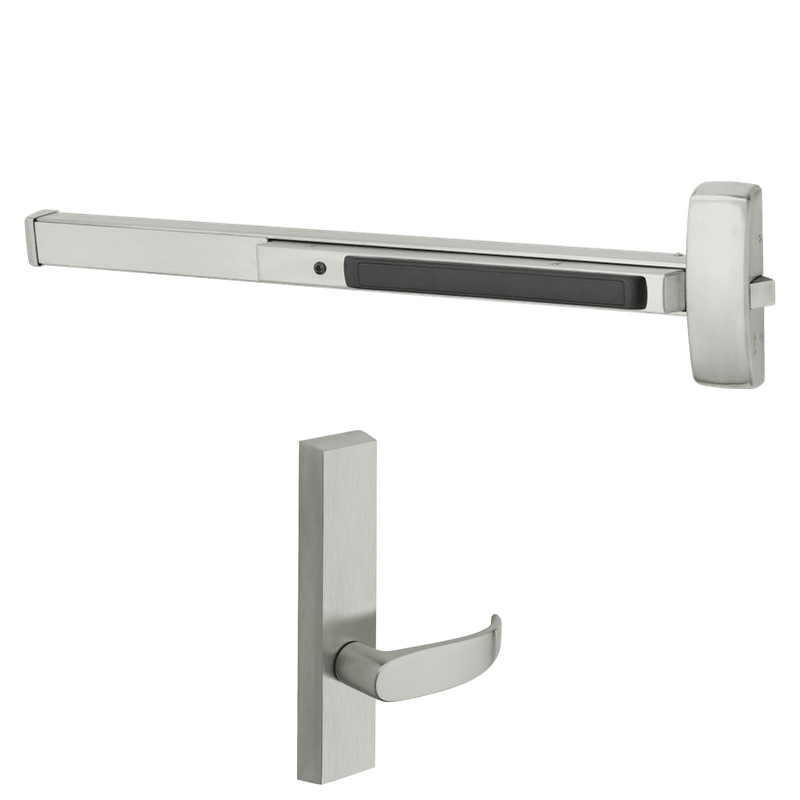

Sargent 56-8873-J-ETP-12V Electrified Rim Exit Device, Electric Latch Retraction, Fail Safe Power Off Unlocks Lever, For 37-42 Inch Width Door, Hex Key Dogging

The Sargent 56-8873-J-ETP-12V is a heavy-duty electrified rim exit device built for high-traffic commercial openings that demand reliable access control. Featuring Electric Latch Retraction (ELR), this device electrically pulls back the latch to allow push/pull operation, remote release, and integration with automatic operators or card readers. The fail-safe configuration ensures the ETP lever trim unlocks when power is removed, supporting safe egress and emergency compliance. Sized for 37 to 42 inch wide doors and equipped with convenient hex key dogging, this Grade 1 device delivers durable, code-compliant performance for schools, healthcare facilities, and office buildings where dependable security and smooth egress are essential.

Features

• Electric Latch Retraction (ELR) electrically retracts the latch for remote and automated access.
• Fail-safe operation unlocks the ETP lever trim when power is removed.
• Designed for doors ranging from 37 to 42 inches in width.
• Hex key dogging allows the push bar to be held in the retracted position.
• Operates on 12V power for compatibility with common access control systems.
• J-type push bar design provides smooth, reliable egress.
• Grade 1 construction built for heavy-duty commercial use.

Functional Details

This device uses Electric Latch Retraction to electrically withdraw the latchbolt, enabling momentary or continuous retraction for remote operation, automatic operators, and controlled access. In the fail-safe configuration, loss of power releases the outside lever trim so the opening can be entered from the exterior, while free egress is always maintained from the inside.

• Electric latch retraction allows the latch to be retracted electrically.
• Fail safe: power off unlocks the outside lever.
• Hex key dogging holds the pushbar depressed and latch retracted for push/pull operation.
• Free egress at all times from the inside.

Included Components

The device ships with the rim exit chassis, ETP lever trim, J-type push rail assembly, and mounting hardware required for installation on doors within the specified width range.
