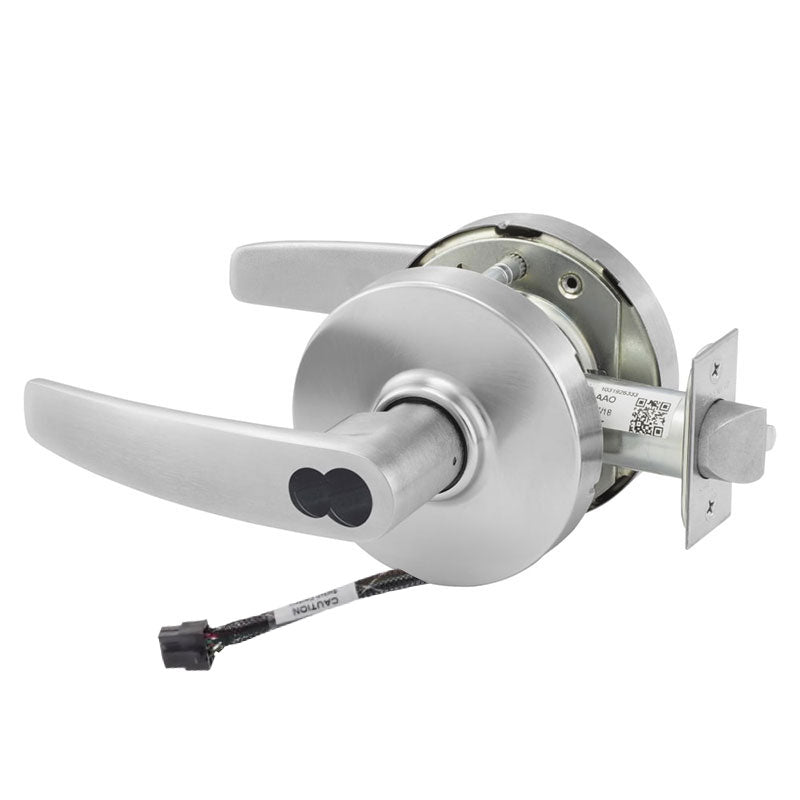

Sargent 60-RX-10XG04-LB-24V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, B Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG04-LB-24V is a Grade 1 storeroom function cylindrical lock built for high-traffic commercial openings that demand durability and controlled access. This model features an integrated Request to Exit (RX) switch operating at 24V, allowing the lock to signal an access control system when the interior lever is used. It comes with the L rose and B lever design, a 2-3/4" backset, and a 4-7/8" strike, along with a large format interchangeable core prepped with a furnished disposable plastic core. In storeroom function, the outside lever stays locked at all times while the inside lever always allows free egress, making it ideal for supply rooms and secured areas.

Features

• Storeroom function keeps the outside lever locked continuously for reliable security.
• Built-in Request to Exit switch communicates with access control systems.
• Operates on 24V for compatibility with electrified hardware setups.
• Large format interchangeable core with a furnished disposable plastic core for easy keying later.
• L rose trim paired with the durable B lever design.
• Grade 1 certification for the highest ANSI/BHMA performance rating.
• 2-3/4" backset and 4-7/8" strike for standard commercial door prep.

Functional Details

The storeroom function (G04) provides a secured entry where the outside lever is always fixed and requires a key for access, while the inside lever remains free for immediate exit. The Request to Exit feature adds an internal switch that notifies the access control system whenever the inside lever is operated.

• Outside lever is fixed. Entrance by key only. Inside lever always free for immediate exit.

Included Components

This lock ships with the L rose, B lever, strike, and a furnished large format interchangeable disposable plastic core to protect the cylinder prep until final keying.
