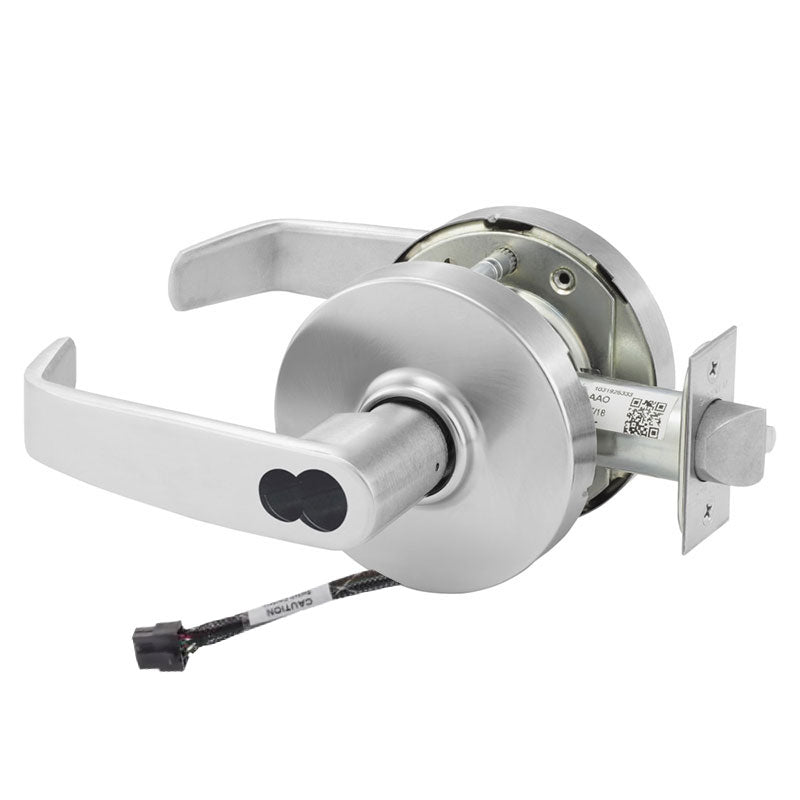

Sargent 60-RX-10XG04-LL-24V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, L Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG04-LL-24V is a Grade 1 cylindrical lever lock built for demanding commercial storeroom applications where security and access control matter. Configured with the storeroom function, this lock keeps the outside lever locked at all times while the key retracts the latch and the inside lever always allows free egress. It features a built-in Request to Exit (RX) switch operating at 24V, making it ideal for integration with electronic access control and monitoring systems. The lock comes with the LL trim design (L rose and L lever) and includes a Large Format Interchangeable Core housing furnished with a disposable plastic construction core for installation flexibility on the job site.

Features

• Storeroom function keeps the outside lever locked while the inside lever always permits free egress.
• Integrated Request to Exit (RX) switch signals monitoring or access control systems when the inside lever is operated.
• Designed for 24V operation to suit low-voltage electronic security systems.
• Large Format Interchangeable Core (LFIC) accepts a furnished disposable plastic core for temporary keying during construction.
• L lever and L rose trim (LL) provide a clean, durable commercial appearance.
• 2-3/4" backset with a 4-7/8" strike for standard commercial door prep.
• Grade 1 rated for the highest level of durability and performance.

Functional Details

The storeroom (G04) function locks the outside lever permanently, allowing entry only by key. Turning the key retracts the latchbolt for access, while the inside lever always retracts the latch to permit free egress. The Request to Exit feature electrically signals when the inside lever is operated.

• Outside lever is always fixed (rigid).
• Latchbolt operated by key from outside.
• Inside lever always active for immediate egress.
