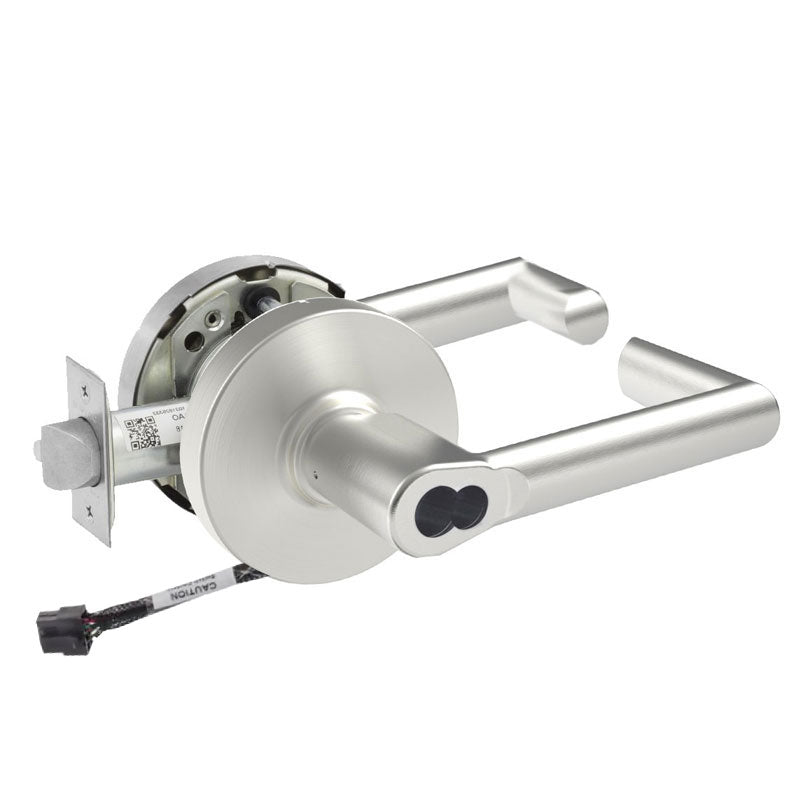

Sargent 60-RX-10XG04-LMW-12V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, MW Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG04-LMW-12V delivers dependable Grade 1 performance for high-traffic commercial openings that require secure storeroom control with electronic monitoring. Built around Sargent's durable 10X Line cylindrical platform, this lock combines a storeroom function with a built-in Request-to-Exit (RX) switch, making it well suited for access-controlled doors where egress signaling is needed. It features the LMW lever design on the L rose, a large format interchangeable core prep, and a furnished disposable plastic core for installation and job-site security. With a 2-3/4" backset and 4-7/8" strike, it fits standard commercial door preparations while providing long-lasting reliability.

Features

• Storeroom function keeps the outside lever locked at all times, with the key retracting the latch for entry.
• Integrated Request-to-Exit (RX) switch signals egress for access control and monitoring systems.
• 12V electrical operation for compatibility with low-voltage access control setups.
• LMW lever mounted on the L rose provides a clean, ergonomic design.
• Large format interchangeable core (LFIC) prep allows quick rekeying and core changes.
• Furnished with a disposable plastic core for temporary keying during installation.
• Grade 1 certified for heavy-duty commercial performance and long-term durability.

Functional Details

The G04 storeroom function provides secure, controlled access. The outside lever remains fixed while the key operates the latch, and the inside lever always allows free egress. The built-in Request-to-Exit switch electronically signals when the inside lever is operated, integrating with door monitoring and access control systems.

• Latchbolt operated by key from outside or lever inside.
• Outside lever always fixed.
• Entrance by key only.
• Inside lever always free for immediate egress.

Included Components

This lockset ships with the LMW lever, L rose trim, strike, and a furnished large format interchangeable disposable plastic core for temporary keying during setup.
