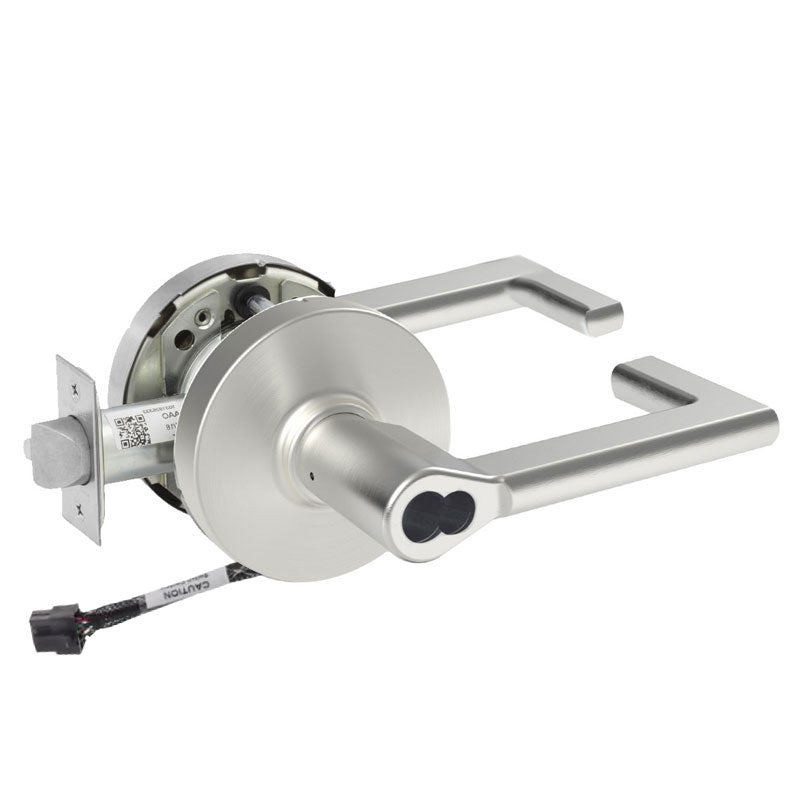

Sargent 60-RX-10XG04-LND-12V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, ND Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG04-LND-12V is a Grade 1 storeroom function cylindrical lock built for high-traffic commercial openings that demand durability and reliable access control. It combines the ND lever with the L rose for a clean, ergonomic profile, and includes an integrated Request to Exit (RX) switch that signals when the lever is operated. Designed for 12-volt applications, this lockset features a large format interchangeable core (LFIC) housing furnished with a disposable plastic core, allowing quick keying by your locksmith. With a 2-3/4" backset and 4-7/8" ANSI strike, it fits standard commercial door prep and delivers dependable everyday performance.

Features

• Storeroom function keeps the outside lever always locked, with key access required to enter.
• Built-in Request to Exit (RX) switch monitors lever operation for access control integration.
• ND lever paired with the L rose provides a comfortable grip and modern aesthetic.
• Large format interchangeable core housing furnished with a disposable plastic core for fast field keying.
• Grade 1 ANSI/BHMA rating for heavy-duty commercial use.
• Designed for 12-volt electrified applications.
• 2-3/4" backset and 4-7/8" strike suit standard door preparation.

Functional Details

The storeroom function keeps the outside lever continuously locked so entry always requires a key, while the inside lever allows free egress at all times. The RX feature reports each latch retraction to an access control or monitoring system.

• Latchbolt operated by key from outside except when outside lever is locked by rotating turn button in inside lever.
• Latchbolt operated by inside lever at all times.
• Outside lever is always fixed.
