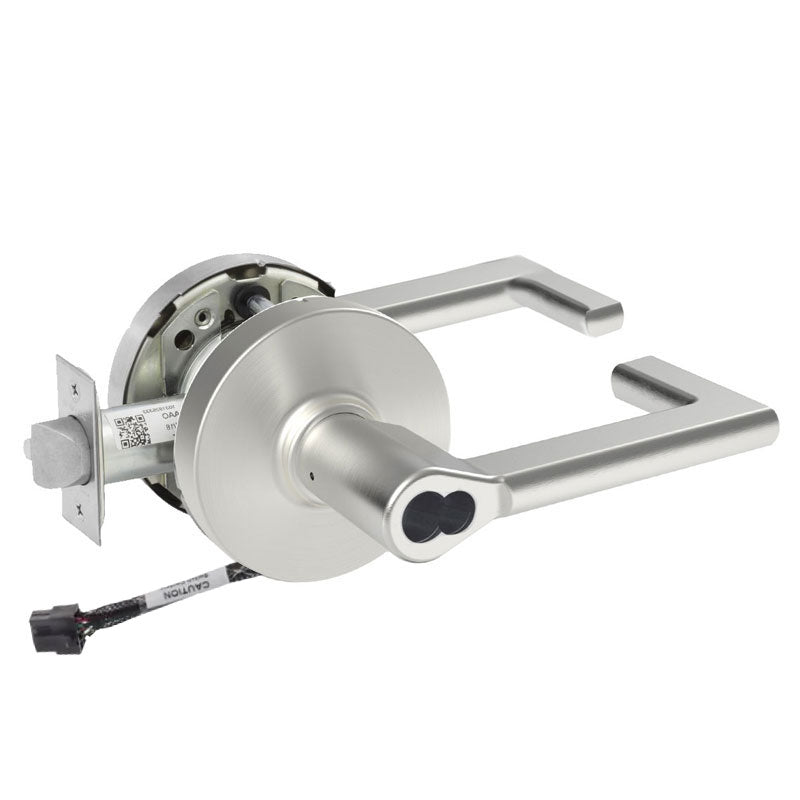

Sargent 60-RX-10XG04-LND-24V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, ND Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG04-LND-24V is a Grade 1 storeroom function cylindrical lock built for demanding commercial openings that require secure access control and monitored egress. It features a Request to Exit (RX) switch that signals when the lever is operated, making it ideal for integration with access control and alarm systems. The lock includes the LND lever paired with the L rose, a 2-3/4" backset, and a 4-7/8" strike. It comes with a large format interchangeable core housing and a furnished disposable plastic core for temporary keying during construction. Operating on 24V, this lock delivers durable, dependable performance in high-traffic environments.

Features

• Storeroom function keeps the outside lever locked at all times, with the key retracting the latch for entry.
• Built-in Request to Exit (RX) switch monitors lever operation for access control applications.
• Large format interchangeable core allows quick rekeying without disassembling the lock.
• Furnished with a disposable plastic core for temporary construction keying.
• LND lever and L rose provide a clean, durable trim suited to commercial use.
• Grade 1 rated for the highest level of ANSI/BHMA performance and durability.

Functional Details

The storeroom function is designed so the outside lever remains locked while the inside lever always allows free egress. A key is required to unlock the outside lever and retract the latch, and the door relocks automatically once the door closes. The integrated Request to Exit switch provides an electrical signal to notify a monitoring system when the inside lever is operated.

• Outside lever always fixed/rigid.
• Latchbolt retracted by key from outside or by rotating inside lever.
• Auxiliary latch deadlocks latchbolt when door is closed.
