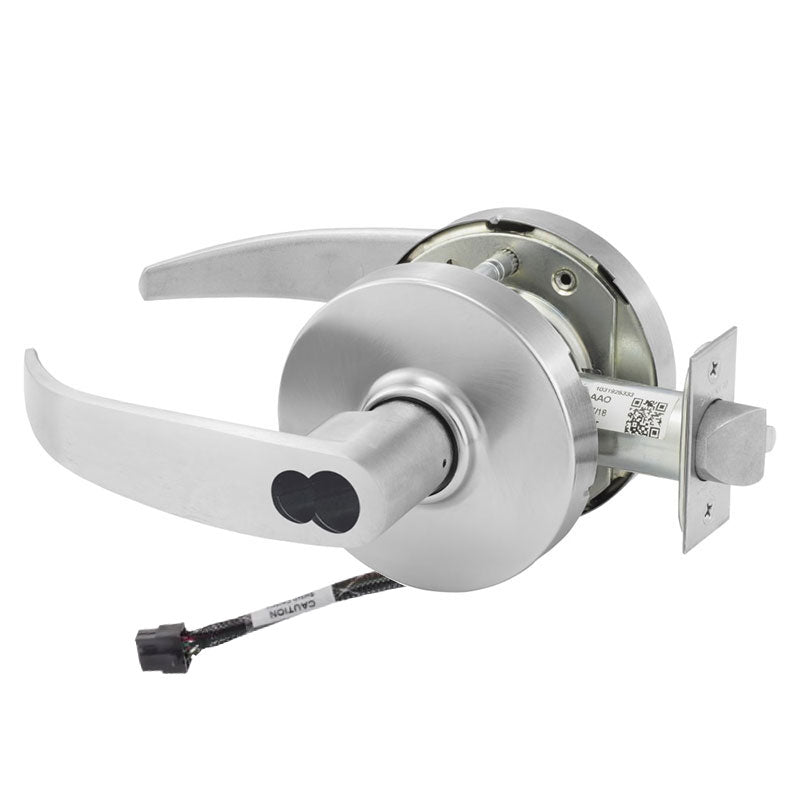

Sargent 60-RX-10XG04-LP-24V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, P Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG04-LP-24V is a Grade 1 storeroom function cylindrical lock built for high-traffic commercial openings that demand reliable security and monitored access. It features an integrated Request to Exit (RX) switch, allowing the lock to signal an access control system when the interior lever is turned. The lock ships with a Large Format Interchangeable disposable plastic core, making initial installation simple while allowing quick keying at final setup. Outfitted with the L Rose and P Lever design, it delivers a clean, durable trim that stands up to daily use. With a 2-3/4" backset and 4-7/8" strike, this 24V lock is a dependable choice for offices, storerooms, and secured facilities.

Features

• Storeroom function keeps the outside lever locked at all times while the inside lever always allows free egress.
• Built-in Request to Exit (RX) switch integrates with electronic access control and monitoring systems.
• Large Format Interchangeable core allows fast rekeying without disassembling the lock.
• Furnished with a disposable plastic construction core for temporary keying during construction.
• Grade 1 rated for the highest level of commercial durability and performance.
• Operates at 24V for compatibility with common access control power supplies.
• L Rose and P Lever trim provide a durable, modern appearance.

Functional Details

The storeroom (G04) function keeps the outside lever permanently locked, requiring a key for entry, while the inside lever always retracts the latch for immediate, code-compliant egress. The Request to Exit feature signals the access control system whenever the inside lever is operated.

• Latch bolt is retracted by key outside or by lever inside.
• Outside lever is always fixed.
• Inside lever is always active for immediate egress.
