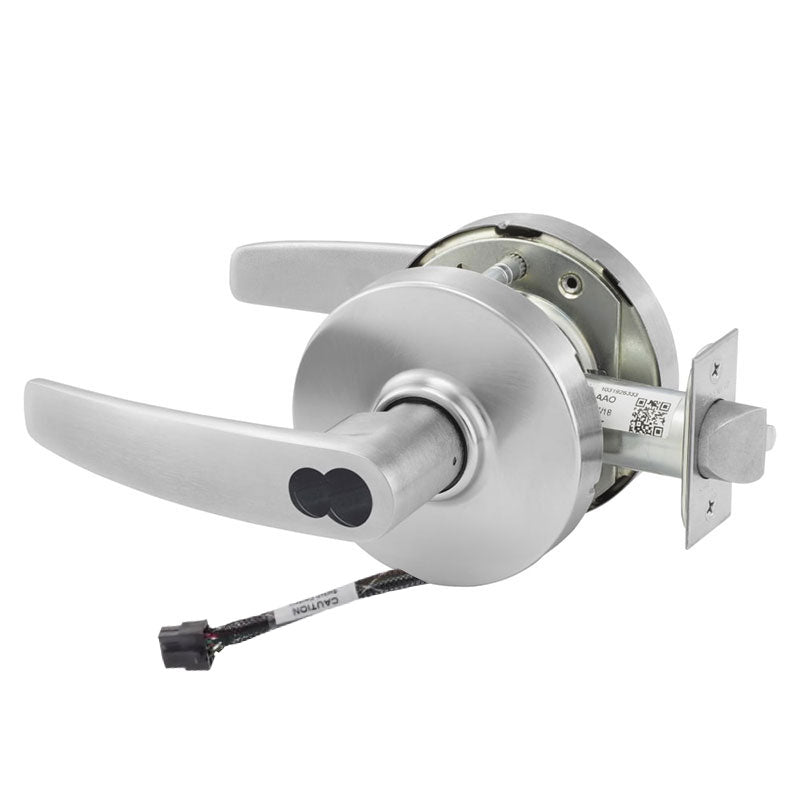

Sargent 60-RX-10XG05-LB-12V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, B Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG05-LB-12V is a Grade 1 cylindrical lever lock built for demanding commercial entrances and office spaces. Configured for entrance or office function, it combines dependable mechanical security with an integrated Request to Exit (RX) signal, making it a strong fit for access-controlled openings that need to communicate door status to a monitoring system. This lockset features the L rose and B lever design, a 2-3/4" backset, and a 4-7/8" strike. It comes prepped for a Large Format Interchangeable Core and ships with a furnished disposable plastic core, allowing quick installation and simple keying once permanent cores are ready.

Features

• Entrance or office function for flexible access control in commercial applications.
• Built-in Request to Exit (RX) switch for signaling and monitoring integration.
• 12V operation supports electrified access control systems.
• Large Format Interchangeable Core prep for versatile keying options.
• Furnished with a disposable plastic core for temporary use during construction.
• Grade 1 rated for heavy-duty, high-traffic environments.
• L rose and B lever styling paired with a 2-3/4" backset and 4-7/8" strike.

Functional Details

The entrance or office function allows the outside lever to be locked or unlocked as needed, while the Request to Exit feature signals when the inside lever is turned, enabling the door to report egress activity to an access control or monitoring system.

• Latchbolt operated by lever from either side unless outside lever is locked.
• Outside lever locked and unlocked by key.
• Turn/push button inside locks outside lever.
• Rotating inside lever releases turn/push button.

Included Components

This lockset is furnished with a disposable plastic core to permit installation and temporary operation until a permanent Large Format Interchangeable Core is installed.
