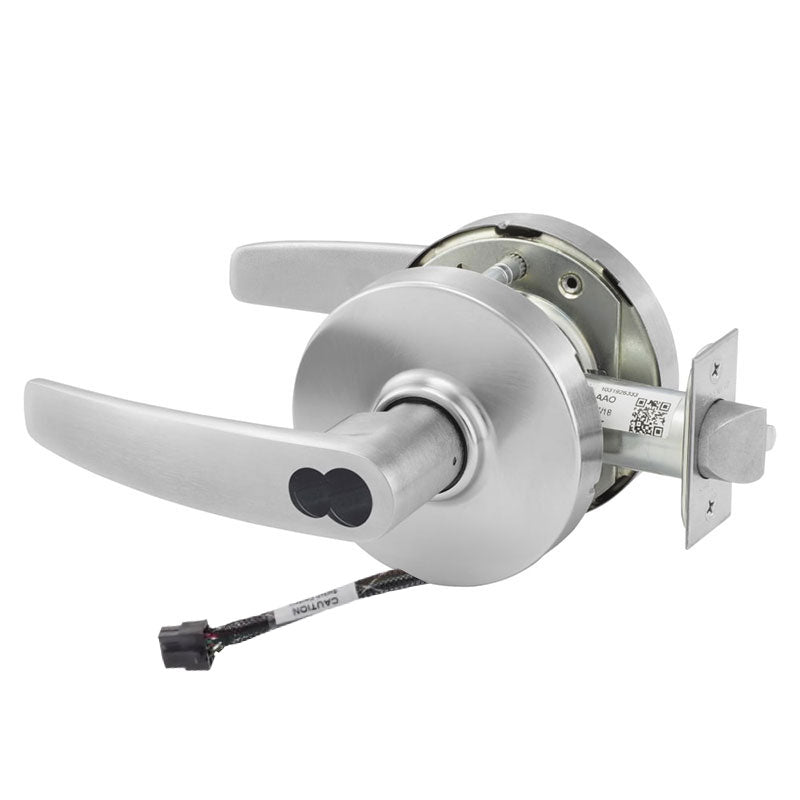

Sargent 60-RX-10XG05-LB-24V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, B Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG05-LB-24V is a Grade 1 cylindrical lever lock built for entrance and office openings that demand reliable access control and monitoring. This lock features the Entrance or Office function paired with an integrated Request to Exit (RX) switch operating at 24V, allowing the door to signal an access control system when the interior lever is used. It comes with the L rose and B lever design, a 2-3/4" backset, and a 4-7/8" strike. The large format interchangeable core (LFIC) accepts a furnished disposable plastic core, making it ideal for construction keying and later rekeying without replacing the lock hardware.

Features

• Grade 1 certified cylindrical lever lock for heavy-duty commercial applications.
• Entrance or Office function provides flexible locking control for interior and perimeter doors.
• Integrated Request to Exit (RX) switch communicates lever activation to access control systems.
• Operates on a 24V electrical supply for compatibility with standard low-voltage systems.
• Large format interchangeable core allows fast rekeying without lock removal.
• Furnished with a disposable plastic construction core for temporary keying during install.
• L rose and B lever styling for a clean, durable finish.
• Standard 2-3/4" backset with a 4-7/8" ANSI strike.

Functional Details

The Entrance or Office function (G05) lets users control access from either side of the door. The outside lever can be locked or unlocked by key or by the inside pushbutton, while the inside lever always allows free egress. The integrated Request to Exit switch signals the access control system whenever the interior lever is rotated.

• Latchbolt operated by lever from either side except when outside lever is locked by key or turn/push button.
• Outside lever locked and unlocked by key.
• When outside lever is locked, latchbolt is retracted by key outside or by rotating inside lever.
• Inside lever always free for immediate egress.

Included Components

This lock ships with the L rose, B lever, a large format interchangeable core housing, a furnished disposable plastic core, and the 4-7/8" ANSI strike.
