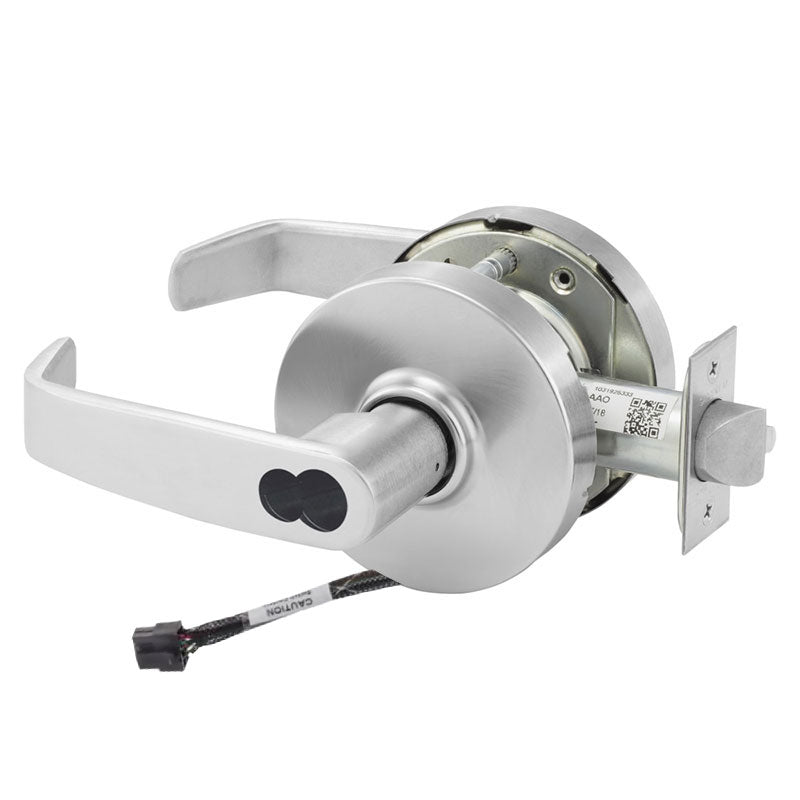

Sargent 60-RX-10XG05-LL-12V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, L Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG05-LL-12V is a Grade 1 cylindrical lever lock built for the high-traffic demands of commercial entrances and offices. Configured for the Entrance or Office function, it delivers dependable keyed security while integrating a Request to Exit (RX) switch that signals access control and monitoring systems when the interior lever is operated. This model features the L rose and L lever design, a 2-3/4" backset, and a 4-7/8" strike. It accepts a Large Format Interchangeable Core and ships with a disposable plastic core, allowing quick installation and later keying by the end user. The 12V operation supports electrified access control setups.

Features

• Grade 1 cylindrical lever lock rated for heavy commercial use.
• Entrance or Office function for flexible access control at main and interior doors.
• Built-in Request to Exit (RX) switch communicates lever activation to security systems.
• L rose and L lever styling for a clean, contemporary look.
• Large Format Interchangeable Core design allows fast core replacement and rekeying.
• Furnished with a disposable plastic core to protect the lockset until final keying.
• 12V operation for compatibility with electrified access control systems.
• Standard 2-3/4" backset with a 4-7/8" strike.

Functional Details

The Entrance or Office function allows the lock to be secured or left in a passage state depending on the setting, while the Request to Exit switch monitors interior lever use to signal the access control system that egress has occurred.

• Latch bolt is operated by lever from either side except when outside is locked by rotating inside turn button.
• When outside is locked, latch bolt is retracted by key outside or by turning inside lever.
• Rotating turn button in inside lever locks or unlocks outside lever.
