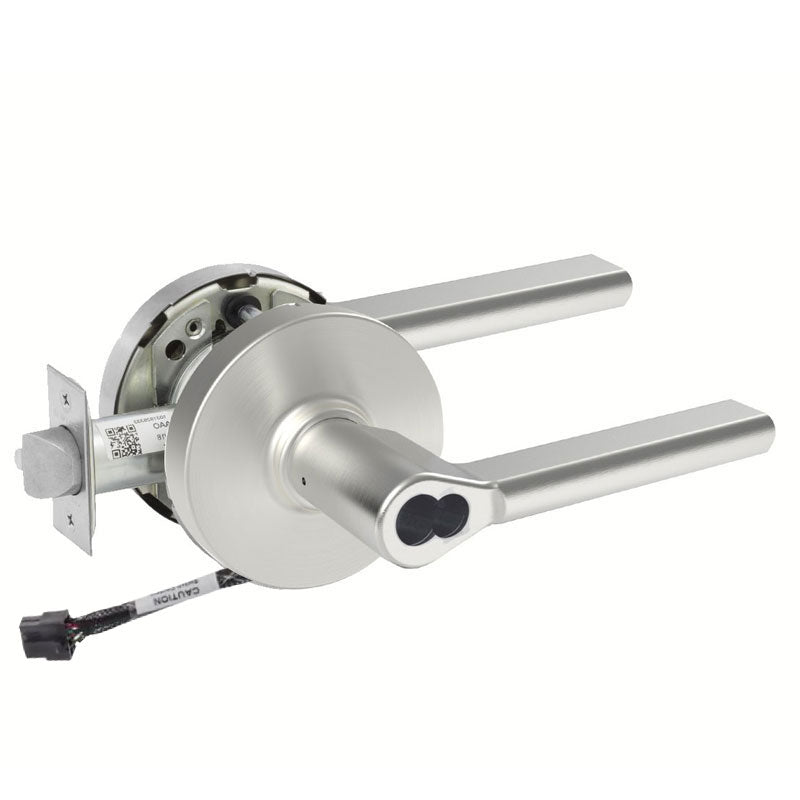

Sargent 60-RX-10XG05-LMD-12V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, MD Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG05-LMD-12V is a Grade 1 cylindrical lock built for entrance or office applications where reliable access control and monitoring are essential. This lockset combines the durable 10X Line chassis with a Request to Exit (RX) switch, allowing the door to signal an access control system when the interior lever is operated. It ships with the LMD lever on the L rose and includes a large format interchangeable core prep with a furnished disposable plastic core, making field keying quick and convenient. The 12V electrified configuration provides consistent performance for commercial openings that demand both security and integration with building systems.

Features

• Grade 1 cylindrical lever lock rated for heavy-duty commercial use.
• Entrance or Office function for controlled access with lockable interior operation.
• Built-in Request to Exit (RX) switch for integration with access control and monitoring systems.
• 12V electrified operation for compatibility with electronic security setups.
• Large format interchangeable core prep with furnished disposable plastic core.
• MD lever mounted on the L rose for a clean, ADA-compliant design.
• 2-3/4" standard backset with a 4-7/8" ANSI strike.

Functional Details

The Entrance or Office function allows the outside lever to be locked or unlocked using a key or interior control, while the inside lever always allows free egress. The integrated Request to Exit switch monitors interior lever movement and communicates that action back to an access control panel.

• Latchbolt operated by lever from either side except when outside lever is locked by key.
• Key in outside lever locks and unlocks outside lever.
• Inside lever always free for immediate egress.
