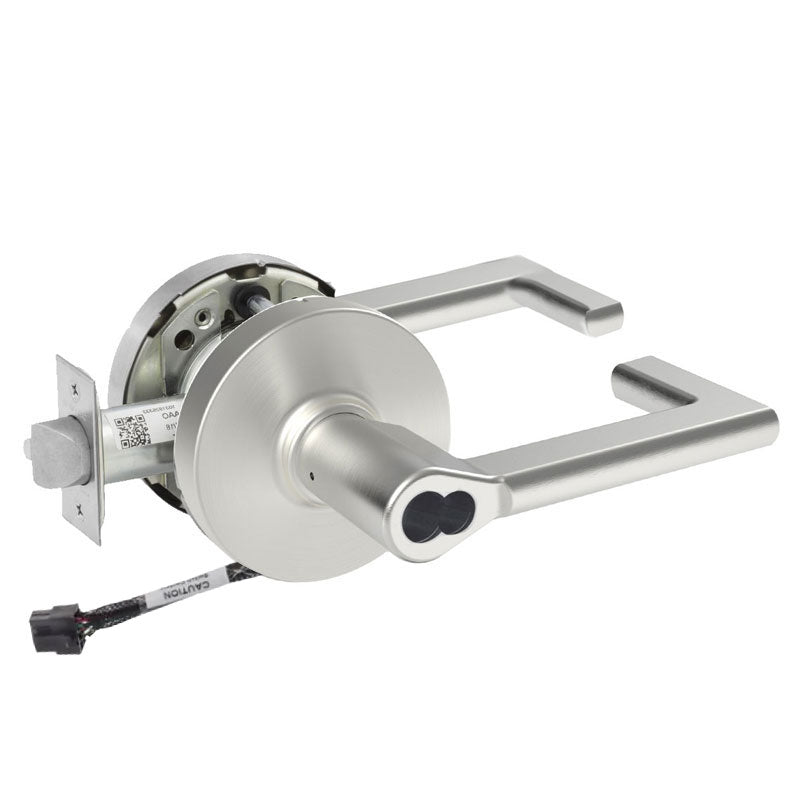

Sargent 60-RX-10XG05-LND-24V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, ND Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG05-LND-24V is a Grade 1 cylindrical lever lock built for entrance or office applications where reliable security and monitoring are needed. This model combines the durable 10X Line chassis with a Request to Exit (RX) switch, allowing the lock to signal an access control system when the inside lever is operated. It features the LND lever design on the L rose, a standard 2-3/4" backset, and a 4-7/8" strike. The lock accepts a large format interchangeable core and ships with a disposable plastic construction core for use during installation. Operating on 24V, it delivers dependable performance in commercial and institutional environments.

Features

• Grade 1 cylindrical lever lock rated for heavy-duty commercial use.
• Entrance or office function provides flexible locking control for interior and exterior openings.
• Integrated Request to Exit (RX) switch communicates lever activation to an access control system.
• LND lever mounted on the L rose for a clean, ergonomic feel.
• Large format interchangeable core (LFIC) design allows quick rekeying and keying system flexibility.
• Furnished with a disposable plastic construction core to protect the permanent cylinder during the build phase.
• Operates on 24V for compatibility with electrified access control setups.

Functional Details

The entrance or office function offers versatile control at the opening. The outside lever can be locked or unlocked using the pushbutton or turn/push button in the inside lever, while the inside lever always allows free egress. The Request to Exit switch monitors interior lever use and reports the action to a connected system.

• Turn/push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked.
• Push button locking. Pushing button locks outside lever until unlocked by key or by turning inside lever.
• Latchbolt operated by lever from either side except when outside lever is locked by push button or turn/push button.

Included Components

This lock ships as a complete cylindrical lockset with the LND lever, L rose, 4-7/8" ANSI strike, and a disposable plastic construction core to facilitate installation prior to final keying.
