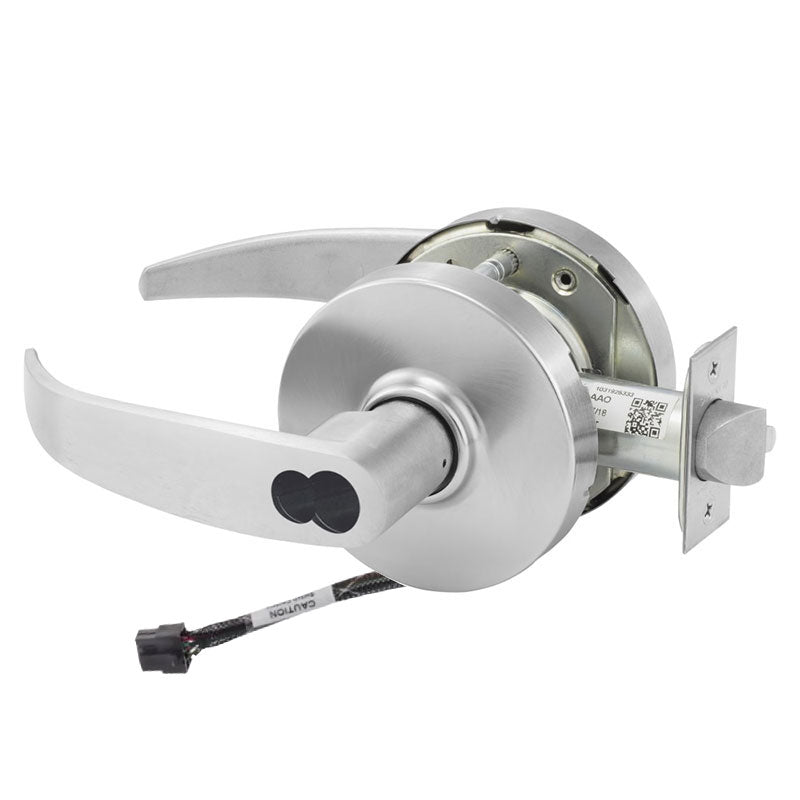

Sargent 60-RX-10XG05-LP-24V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, P Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG05-LP-24V is a Grade 1 cylindrical lever lock built for high-traffic entrance and office openings where reliable security and monitoring are essential. It combines the durable 10X Line chassis with a Request to Exit (RX) switch, allowing the lock to signal an access control or alarm system when the inside lever is operated. Featuring the LP lever design on the L rose, this 24V unit comes with a Large Format Interchangeable Core prepped with a furnished disposable plastic core, so keying can be finalized on site. With a standard 2-3/4" backset and 4-7/8" strike, it installs cleanly on most commercial doors.

Features

• Entrance or Office function provides keyed access with the flexibility to lock or unlock the outside lever as needed.
• Integrated Request to Exit (RX) switch monitors inside lever movement for connection to access control systems.
• 24V electrical rating supports integration with electrified door hardware setups.
• Large Format Interchangeable Core (LFIC) design allows fast rekeying without disassembling the lock.
• Furnished with a disposable plastic core for temporary use until a permanent core is installed.
• P Lever on the L rose delivers a clean, ergonomic design suitable for ADA-compliant applications.
• Grade 1 certified construction ensures long-term durability in demanding environments.

Functional Details

The Entrance or Office function (G05) allows the outside lever to be locked or unlocked using the inside pushbutton, while the key retracts the latch from the outside. The integrated Request to Exit switch reports egress to a monitoring system whenever the inside lever is turned.

• Latchbolt operated by lever from either side except when outside lever is locked by pushbutton.
• When outside lever is locked, latchbolt is operated by key in outside lever or by inside lever.
• Rotating inside lever releases pushbutton unless pushbutton is depressed a second time to hold in the locked position.
• Auxiliary latch deadlocks latchbolt when door is closed.

Included Components

This lockset ships with the L rose, P lever trim, a Large Format Interchangeable Core housing, a furnished disposable plastic core, and the corresponding strike for a complete installation.
