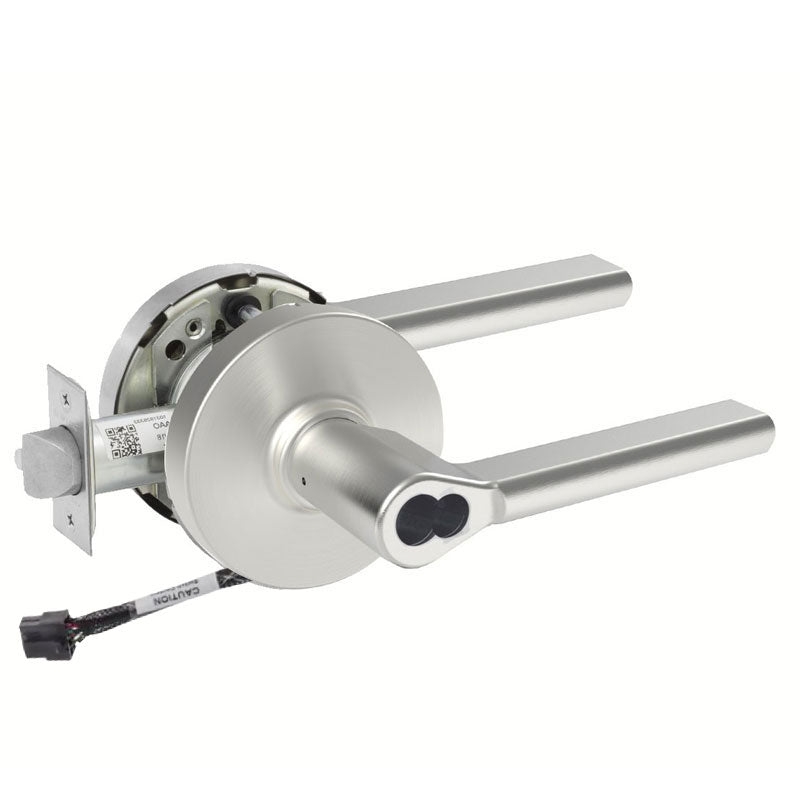

Sargent 60-RX-10XG37-LMD-12V Classroom Function Cylindrical Lock, Request to Exit, L Rose, MD Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG37-LMD-12V is a Grade 1 classroom function cylindrical lever lock built for demanding commercial and institutional openings such as schools, healthcare facilities, and office buildings. It combines proven Sargent durability with an integrated Request to Exit (RX) switch that signals when the lever is operated, making it ideal for access control and monitored door applications. This model features the LMD lever on the L rose, a 2-3/4" backset, and a 4-7/8" ANSI strike. Its large format interchangeable core design ships with a disposable plastic core, allowing installers to place the lock quickly and swap in a permanent keyed core later. The 12V configuration supports low-voltage monitoring.

Features

• Classroom function allows the outside lever to be locked and unlocked by key while the inside lever always permits free egress.
• Integrated Request to Exit (RX) switch monitors lever operation for access control systems.
• Large format interchangeable core (LFIC) accepts field-replaceable cores for flexible keying.
• Furnished with a disposable plastic core for temporary use during construction.
• MD lever mounted on the L rose provides a durable, ADA-compliant design.
• 12V low-voltage operation for compatibility with monitored openings.
• Grade 1 rated for heavy-duty, high-traffic commercial environments.

Functional Details

The classroom function (37) lets an instructor secure the door from the corridor side using a key, while occupants can always exit freely. The Request to Exit switch reports lever activity back to the access control panel.

• Classroom Function: Latch bolt operated by lever inside or key outside. Outside lever locked and unlocked by key. When outside lever is locked, latch bolt operated by inside lever or by key outside. Inside lever always active for immediate egress.
