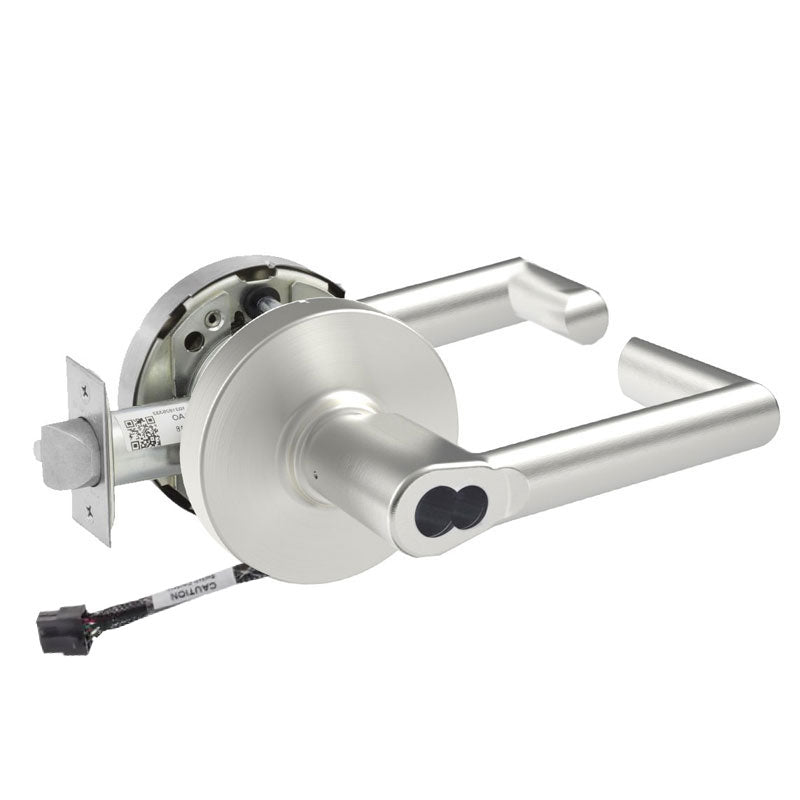

Sargent 60-RX-10XG37-LMW-24V Classroom Function Cylindrical Lock, Request to Exit, L Rose, MW Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG37-LMW-24V is a Grade 1 classroom function cylindrical lock engineered for high-traffic commercial and institutional openings where security and monitoring matter. It combines dependable classroom operation with an integrated Request to Exit (RX) switch, allowing the lock to communicate with access control and security systems. Outfitted with the LMW lever and L rose, it delivers a clean, durable trim that stands up to daily use. The lock ships with a large format interchangeable disposable plastic core, giving installers flexibility to swap in a permanent keyed core later. A 2-3/4" backset and 4-7/8" strike round out this reliable, code-compliant solution.

Features

• Grade 1 cylindrical lock built for demanding commercial and educational environments.
• Classroom function allows the outside lever to be locked or unlocked by key, while the inside lever always allows free egress.
• Integrated Request to Exit (RX) switch signals when the inside lever is operated for access control monitoring.
• 24V operation for compatibility with electrified security and monitoring systems.
• LMW lever paired with the L rose for a durable, comfortable grip.
• Large format interchangeable core design simplifies rekeying and core replacement.
• Furnished with a disposable plastic core for temporary use during construction.
• 2-3/4" backset and 4-7/8" strike for standard commercial door prep.

Functional Details

The classroom function lets authorized staff control the outside lever with a key, locking or unlocking access from the corridor side, while the inside lever always retracts the latch for safe, unobstructed egress. The Request to Exit switch reports lever activity to the building's security system.

• Outside lever locked or unlocked by key.
• Inside lever always free for immediate egress.
• Latchbolt retracted by lever from either side except when outside is locked.
• Auxiliary latch deadlocks the latchbolt when the door is closed.

Included Components

This lock is furnished with a large format interchangeable disposable plastic core, allowing the opening to be secured during construction and easily converted to a permanent keyed core when ready.
