Description

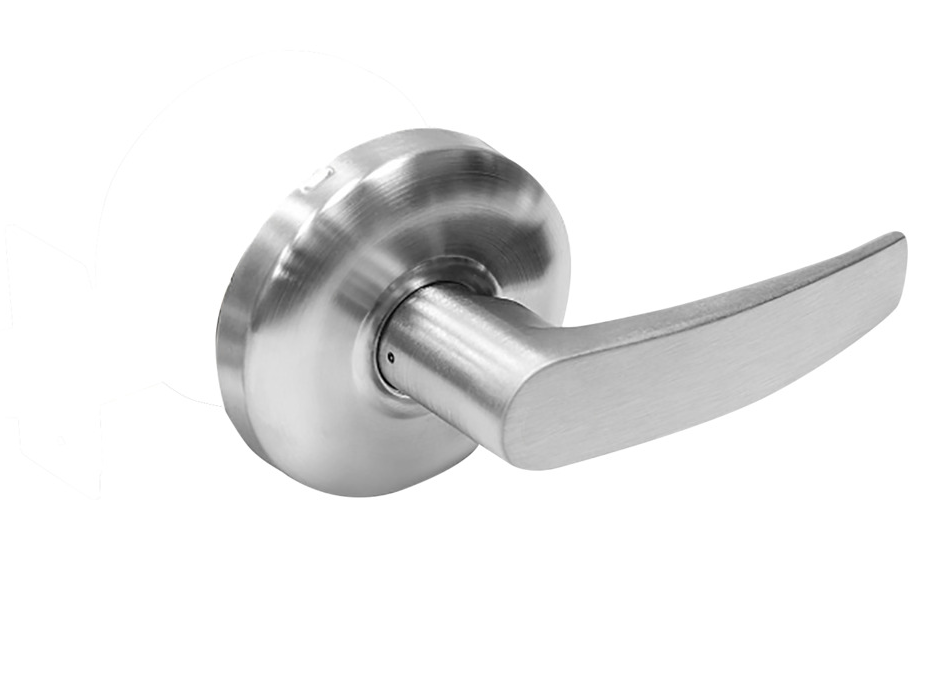

Sargent 65U94 Cylindrical Lever Lock Double Lever Dummy Pull, K Rose 3-3/8" Diameter, L Lever, Optional Finishes
| Technical Specs | |
| Function | Double Lever Dummy |
| Function Family | Dummy |
| ANSI Function |
Double Lever Dummy |
| Lever/Knob Design | L Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design |
3-3/8" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-3/8" |
| Cylinder Type |
Optional |
| Num Pins | Optional |
| Key(s) | Optional |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-3/8" to 1-3/4" |
| Std. Latch Number | 103121 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 808 |
| Std. Strike Type | ANSI Curved Lip Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Dust Box | None |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
6500-Line Bored Lever Locks
Windstorm certified and has several function options.
The SARGENT 6500 Line is a standard duty key-in-lever lock designed to exceed the requirements of ANSI A156.2 Series 4000 Grade 2.
- For Doors: 1-3/8" (35mm) to 1-3/4" (44mm) only
- Backset: 2-3/4" (70mm) standard; 2-3/8" (60mm) optional (20- Prefix)
- Cylindrical Housing: Steel zinc dichromate finish
- Front: Wrought brass and stainless steel;
- 2-1/4" (57mm) x 1-1/8"(29mm)
- Strike: 600 Curved Lip, Brass or Stainless Steel Standard, 808 ANSI Curved Lip available (28- prefix), 505 Full Lip strike available (14- prefix)
- Hand: Universal, not handed
- Latch: Brass 1/2" (13mm) throw
- Keys: Two, nickel silver
- Cylinder: Brass, 6 pins, LA keyway standard
- Finishes : 3, 4, 10, 10B, 26, 26D
- (No Split Finish)
- Door Prep: ANSI A115.2 (161) Modified
- Minimum Stile: 4-1/2" (114mm)
