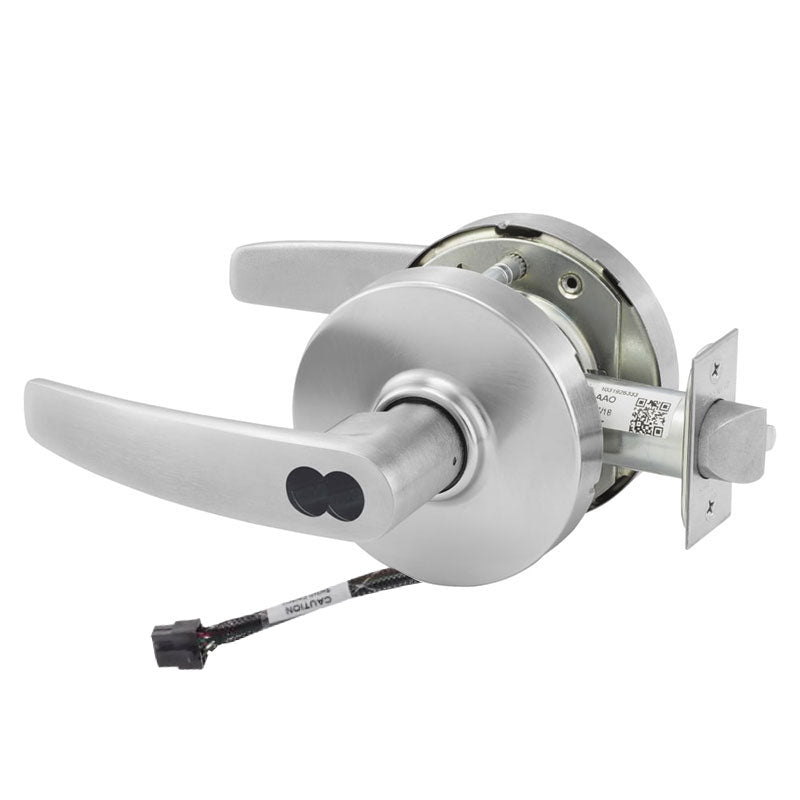

Sargent 70-RX-10XG04-LB-12V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, B Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG04-LB-12V is a Grade 1 storeroom function cylindrical lock built for high-traffic commercial openings that demand durability and reliable access control. This unit features an integrated Request to Exit (RX) switch that monitors latch retraction, making it ideal for use with electronic access systems. It comes configured with the L rose and B lever design, a 2-3/4" backset, and a 4-7/8" strike. Prepared for a small format interchangeable core and furnished less core, it lets you match the lock to your existing keying system. The 12V operation supports low-voltage electrified applications for monitored entry and exit points.

Features

• Storeroom function keeps the outside lever locked at all times while the inside lever always allows free egress.
• Built-in Request to Exit (RX) switch signals when the inside lever is operated for integration with access control.
• L rose and B lever combination provides a clean, ergonomic design for commercial interiors.
• Small format interchangeable core preparation, furnished less core, for flexible keying.
• Grade 1 ANSI/BHMA rating for heavy-duty commercial performance.
• 2-3/4" standard backset with a 4-7/8" ANSI strike.
• 12V low-voltage operation for electrified access applications.

Functional Details

The storeroom (G04) function secures the opening by keeping the outside lever permanently locked, requiring a key for entry, while the inside lever remains free for immediate egress. The RX feature reports latch operation back to an access control system for monitoring.

• Outside lever is always locked.
• Key outside retracts latch bolt for entry.
• Inside lever always free for immediate egress.
• Auxiliary latch deadlocks latchbolt when door is closed.
