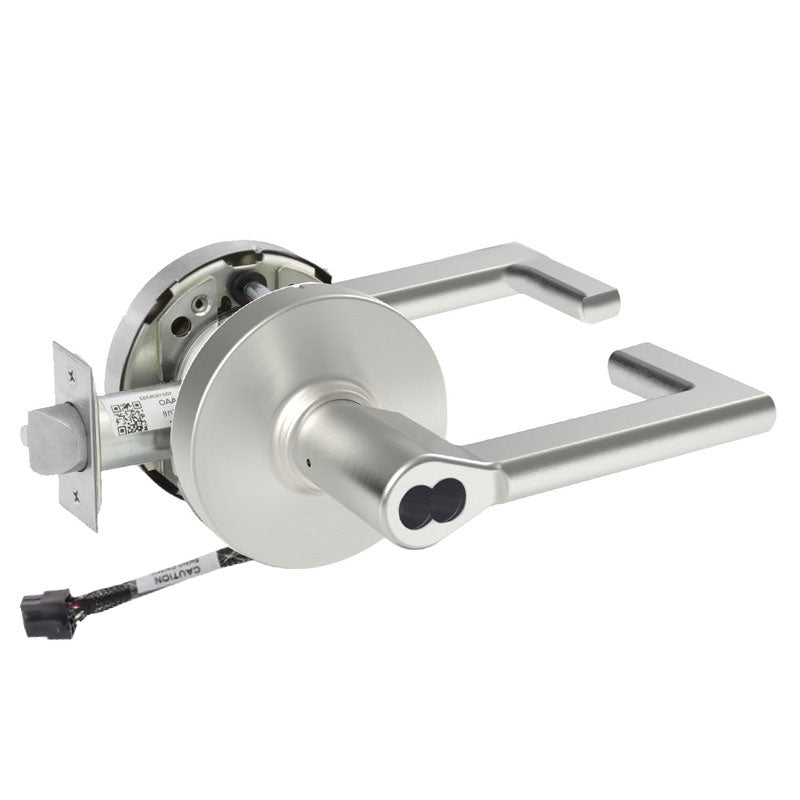

Sargent 70-RX-10XG04-LND-12V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, ND Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG04-LND-12V is a Grade 1 storeroom function cylindrical lock built for high-traffic commercial openings that require both durability and electronic monitoring. This lock features an integrated Request to Exit (RX) switch and operates on 12V, making it suitable for access control and door status monitoring applications. It comes with the LND lever on the L rose and is furnished less core, accepting a small format interchangeable core (SFIC) so facilities can key it to their existing system. With a standard 2-3/4" backset and 4-7/8" strike, it fits a wide range of standard door prep, delivering reliable security where controlled access matters.

Features

• Grade 1 cylindrical lock rated for heavy-duty commercial use.
• Storeroom function keeps the outside lever locked at all times while the inside lever always allows free egress.
• Integrated Request to Exit (RX) switch signals when the inside lever is operated for access control monitoring.
• 12V electrical operation for compatibility with access control systems.
• Small format interchangeable core design, furnished less core for flexible keying.
• LND lever mounted on the L rose for a clean, ADA-compliant appearance.
• Standard 2-3/4" backset and 4-7/8" strike for common door preparations.

Functional Details

The storeroom function (10XG04) keeps the outside lever fixed and locked while a key retracts the latchbolt for entry. The inside lever is always free for immediate egress, and the RX switch reports each use to a connected access control system.

• Outside lever is always fixed. Entrance by key only. Inside lever always free for immediate exit.
• Deadlocking latchbolt.
