Description

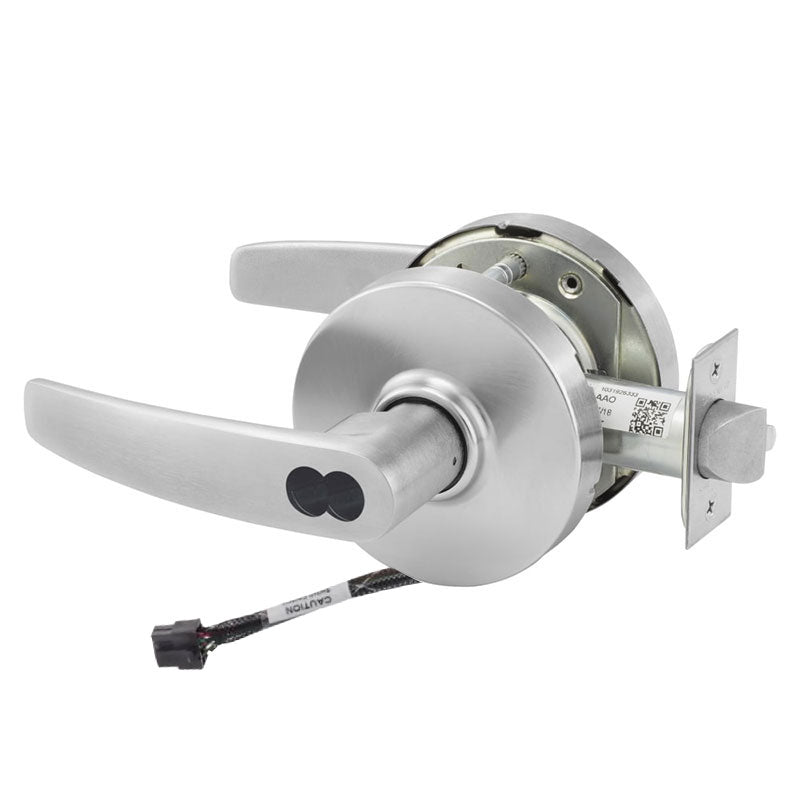

Sargent 70-RX-10XG05-LB-12V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, B Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1
The Sargent 70-RX-10XG05-LB-12V is a Grade 1 cylindrical lock built for entrance or office applications where controlled access and monitored egress matter. This lockset pairs the durable 10X Line chassis with a request-to-exit (RX) switch, allowing the door to signal an access control system whenever the inside lever is used. It features the LB trim design, combining the L rose with the B lever, and comes furnished less core to accept a small format interchangeable core (SFIC) of your choosing. With a standard 2-3/4" backset and 4-7/8" strike, it's a dependable choice for commercial doors requiring reliable, high-cycle performance.
Features
- Entrance or Office function provides flexible key-controlled access for busy commercial openings.
- Built-in request-to-exit (RX) switch integrates with access control systems to monitor egress.
- 12V operation supports low-voltage electrified applications.
- Small format interchangeable core design lets you install your own SFIC for keying flexibility.
- LB trim combines the L rose with the durable B lever design.
- Standard 2-3/4" backset with a 4-7/8" strike for common commercial door prep.
- Grade 1 rated for the highest level of commercial durability.
Functional Details
The Entrance or Office function (G05) allows the outside lever to be locked or unlocked by key, while the request-to-exit switch reports lever activation on the inside to a connected access control system for monitored egress.
- Latchbolt operated by lever from either side except when outside lever is locked by key.
- When outside lever is locked, latchbolt is retracted by key outside or by rotating inside lever.
- Auxiliary latch deadlocks latchbolt when door is closed.
Included Components
This lock is furnished less core and requires a compatible Sargent small format interchangeable core to complete the assembly.
Product Specifications
| Manufacturer | Sargent |
| SKU | 70-RX-10XG05-LB-12V |
| Grade | Grade 1 |
| Function | Entrance or Office |
| Core Type | Small Format Interchangeable (Less Core) |
| Origin | Made in USA |
| Unit of Measure | Each |
| UL Listing Type | 3-Hour Fire Rated |
| ANSI Number | A156.2, Series 4000 |
| BAA Qualified | Yes |
| Limited Warranty | Yes |
Technical Specifications
| Backset | 2-3/4" |
| Strike | 4-7/8" |
| Voltage | 12V |
| Latchbolt Throw | 1/2" |
| Rose Type | L Rose |
| Lever Style | B Lever |
| Door Thickness Range | 1-3/8" to 1-3/4" (standard) |
| Switch Type | Request to Exit (RX) |
| Chassis | 10X Line Cylindrical |
| ANSI Strike Prep | 4-7/8" x 1-1/4" |
