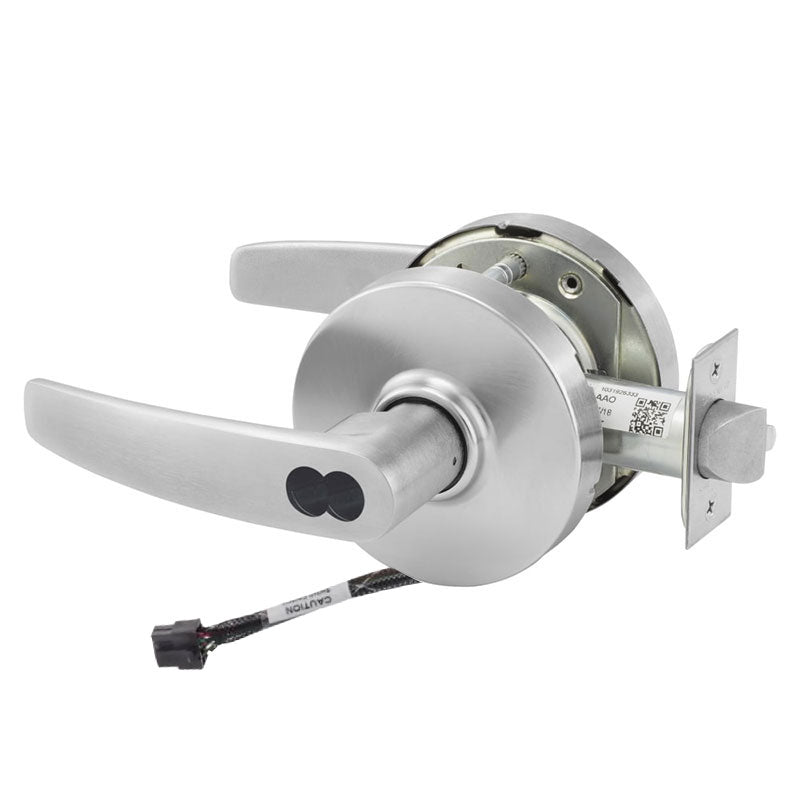

Sargent 70-RX-10XG05-LB-24V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, B Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG05-LB-24V is a Grade 1 cylindrical lever lock built for the demands of high-traffic commercial openings. Configured for Entrance or Office function, it delivers reliable access control with an integrated Request-to-Exit (RX) switch that monitors latch or lever activity for use with electronic security systems. This lock features the LB lever on the L rose, a 2-3/4" backset, and a 4-7/8" strike, and it accepts a small format interchangeable core (furnished less core) for flexible keying. Operating at 24V, it's a durable choice for offices, schools, healthcare, and other institutional environments where security and monitored egress are essential.

Features

• Grade 1 cylindrical lever lock rated for heavy-duty commercial use.
• Entrance or Office function provides keyed access with locking capability from the outside.
• Integrated Request-to-Exit (RX) switch signals authorized egress to access control systems.
• LB lever paired with the L rose for a clean, ergonomic design.
• Small format interchangeable core prep, furnished less core for keying flexibility.
• 2-3/4" standard backset with a 4-7/8" ANSI strike.
• Operates on 24V for compatibility with electrified access systems.

Functional Details

The Entrance or Office function allows the outside lever to be locked or unlocked by key, while the inside lever always retains free egress. The built-in Request-to-Exit switch reports lever or latch operation to a monitoring system, supporting compliant, tracked egress on controlled openings.

• Turn/push button locking; key in outside lever locks or unlocks outside lever.
• Latchbolt retracted by lever from either side except when outside lever is locked.
• Inside lever always free for immediate egress.
