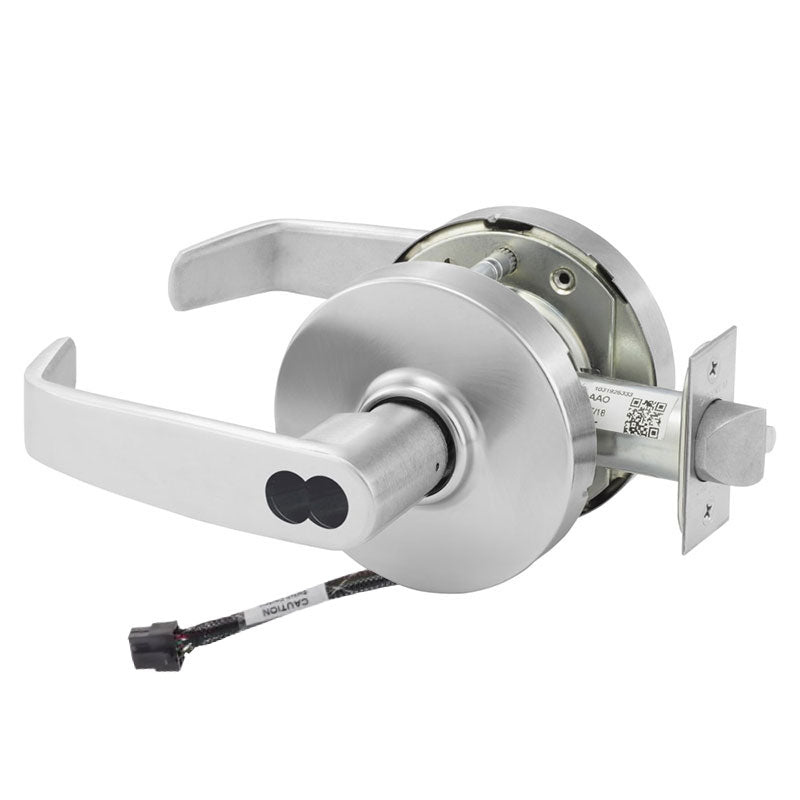

Sargent 70-RX-10XG05-LL-12V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, L Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG05-LL-12V is a Grade 1 cylindrical lever lock built for the demands of high-traffic commercial openings. Configured for Entrance or Office function with an integrated Request to Exit (RX) switch, this lock monitors latchbolt retraction and signals door status back to an access control system. It features the LL trim combination—an L rose paired with an L lever—along with a 2-3/4" backset and a 4-7/8" strike. The 12V electrical option and small format interchangeable core (furnished less core) make it a flexible choice for facilities that standardize on their own keying systems while integrating electronic monitoring.

Features

• Entrance or Office function suited for offices, entry doors, and other controlled-access rooms.
• Integrated Request to Exit (RX) switch reports latch activity to access control and monitoring systems.
• 12V DC electrical operation for compatibility with low-voltage building systems.
• Grade 1 rated construction for durability in heavy-use commercial environments.
• Small format interchangeable core, furnished less core, for keying flexibility.
• L rose and L lever trim (LL) design with a clean, contemporary appearance.
• Standard 2-3/4" backset with a 4-7/8" ANSI strike.

Functional Details

The Entrance/Office function allows the outside lever to be locked or unlocked by a key or an inside thumbturn, while the inside lever always retracts the latch for free egress. The Request to Exit switch senses when the inside lever is used, providing a signal that can bypass alarms or unlock associated openings.

• Turn/push button locking. Latchbolt operated by key outside or lever inside.
• Auxiliary latch deadlocks latchbolt when door is closed.
