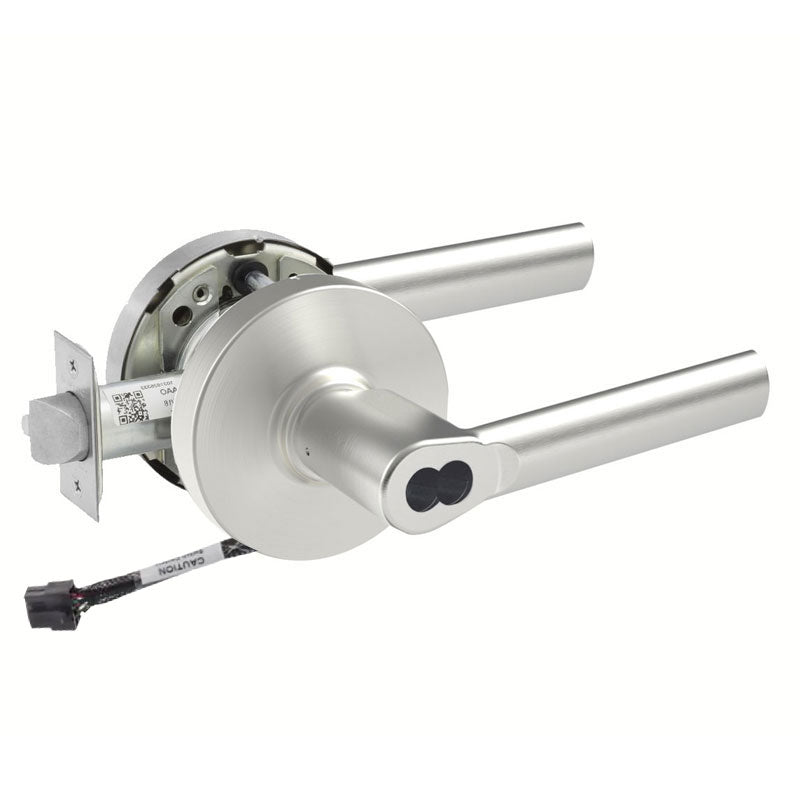

Sargent 70-RX-10XG05-LMB-12V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, MB Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG05-LMB-12V is a Grade 1 cylindrical lock built for busy commercial openings that need dependable access control and monitoring. Configured for Entrance or Office function, it includes a factory-installed Request to Exit (RX) switch that signals when the lever is operated, making it ideal for integration with electronic security systems. This lever set features the LMB lever on the L rose, a 2-3/4" backset, and a 4-7/8" strike. Furnished less core with a small format interchangeable core (SFIC) housing, it lets facilities standardize keying across their site while the 12V operation supports low-voltage installations.

Features

• Entrance or Office function providing keyed access with interior locking control.
• Factory-installed Request to Exit (RX) switch for monitored egress and system integration.
• Grade 1 cylindrical design engineered for heavy-duty commercial use.
• Small format interchangeable core (SFIC) housing, furnished less core for flexible keying.
• LMB lever mounted on the L rose for a clean, durable finish.
• Standard 2-3/4" backset with a 4-7/8" ANSI strike.
• 12V low-voltage operation for compatibility with access control systems.

Functional Details

The Entrance or Office function allows the door to be locked or unlocked from the inside, while the outside lever can be operated with a key when locked. The integrated RX switch monitors lever movement, sending a signal to the access control system whenever an occupant exits, allowing shunting of alarms without physically unlocking the door.

• Turn/push button locking. Pushing and turning button provides continuous locking until turned to unlock.
• Latchbolt operated by lever from either side except when outside lever is locked by push button.
• When outside lever is locked, latchbolt is operated by key in outside lever or by rotating inside lever.
• Closing door does not release button.
