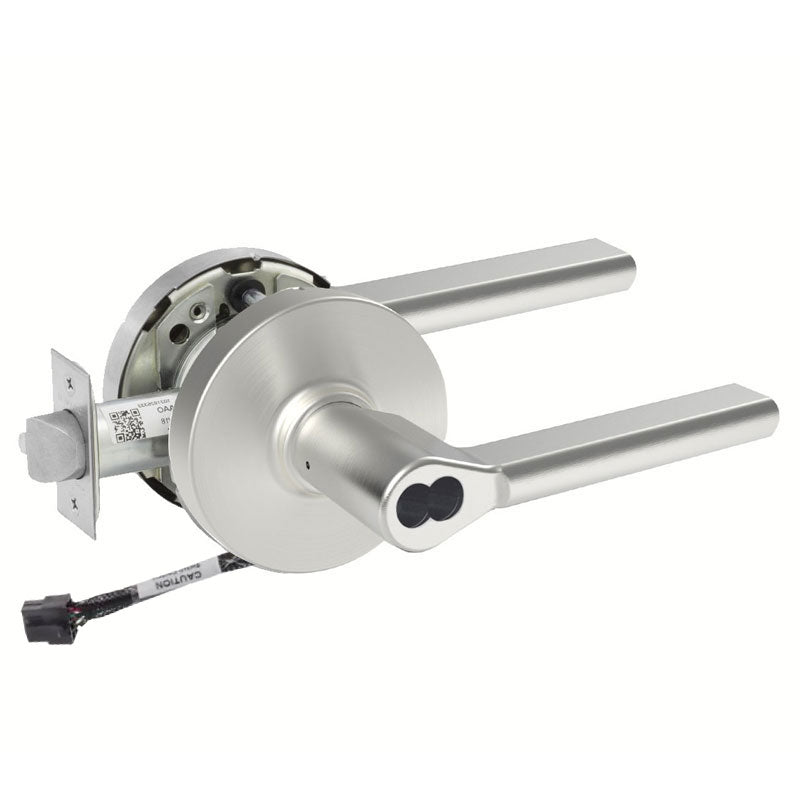

Sargent 70-RX-10XG05-LMD-24V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, MD Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG05-LMD-24V is a Grade 1 cylindrical lever lock built for entrance and office openings where reliable access control and monitoring matter. This model combines the popular Entrance or Office function with a built-in Request to Exit (RX) switch, allowing the lock to signal an access control system when the lever is operated from the secure side. It features the LMD lever on an L rose, a 2-3/4" backset, and a 4-7/8" ANSI strike. The 24V operation and small format interchangeable core prep make it a flexible choice for commercial facilities, and it ships less core so you can key it to your existing system.

Features

• Entrance or Office function provides secure, everyday access control for commercial doors.
• Integrated Request to Exit (RX) switch communicates lever activation to access control and monitoring systems.
• Small format interchangeable core prep allows quick rekeying and core swaps.
• Furnished less core so it can be keyed into your facility's existing system.
• MD lever design paired with the L rose for a clean, durable trim appearance.
• 2-3/4" backset with a 4-7/8" ANSI strike for standard commercial installations.
• 24V electrified operation suited for integration with electronic access systems.
• Grade 1 certification for high-frequency, heavy-duty use.

Functional Details

The Entrance or Office function (G05) allows the door to be locked or unlocked from the outside by key, while the inside lever always retains free egress. The Request to Exit feature adds an internal switch that reports lever movement, giving access control systems a signal when the door is used from the secure side.

• Latchbolt operated by lever from either side except when outside lever is locked by key.
• Outside lever locked and unlocked by key.
• Rotating inside lever, closing the door, or turning the key releases button and unlocks outside lever.
• Inside lever always free for immediate exit.
