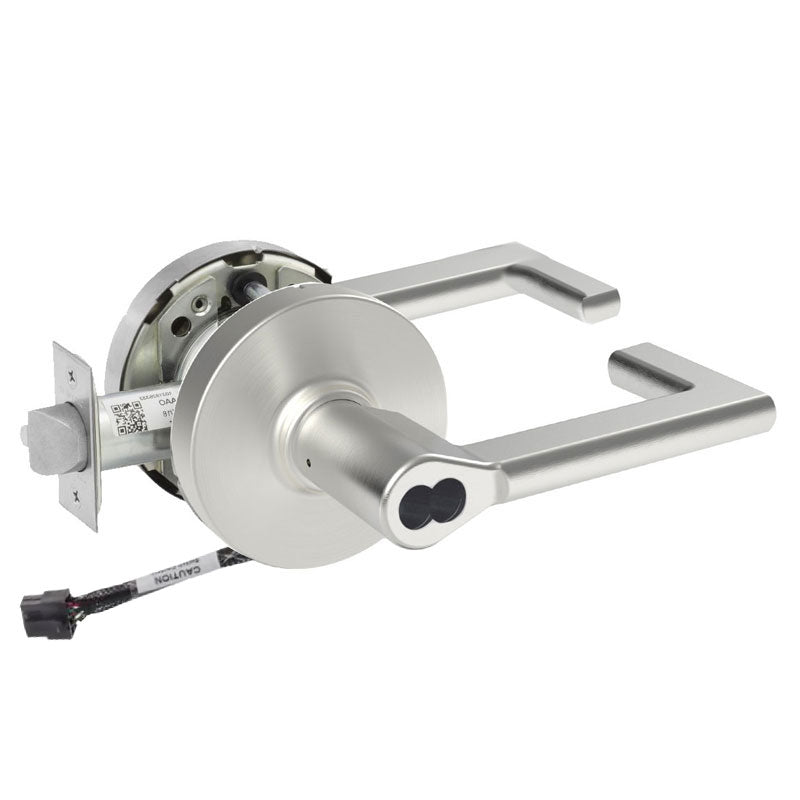

Sargent 70-RX-10XG05-LND-24V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, ND Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG05-LND-24V is a Grade 1 cylindrical lever lock built for entrance or office openings that require dependable access control and monitoring. Part of Sargent's 10X Line, this lockset combines an Entrance or Office function with a built-in Request to Exit (RX) switch, letting the hardware signal an access control system when the lever is operated from the inside. It features the LND lever on an L rose, a 2-3/4" backset, and a 4-7/8" ANSI strike. The unit ships less core with a small format interchangeable core prep, and runs on 24V power, making it a flexible choice for commercial installations that demand both security and integration.

Features

• Grade 1 cylindrical lock rated for heavy-duty commercial use.
• Entrance or Office function provides controlled access with locking flexibility.
• Integrated Request to Exit (RX) switch communicates lever movement to access control systems.
• LND lever mounted on the L rose for a clean, durable design.
• Small format interchangeable core prep, furnished less core for keying flexibility.
• Standard 2-3/4" backset with a 4-7/8" ANSI strike.
• Operates on 24V power for compatibility with electrified openings.

Functional Details

The Entrance or Office function allows the outside lever to be locked or unlocked with a key or interior button, while the Request to Exit feature reports free egress activity from the interior side to a connected security system. Turning the inside lever retracts the latch and signals the RX switch.

• Latchbolt operated by lever from either side except when outside lever is locked by key.
• Outside lever locked and unlocked by key.
• When outside lever is locked, latchbolt is operated by inside lever or by key in outside lever.
• Inside lever always free for immediate egress.
