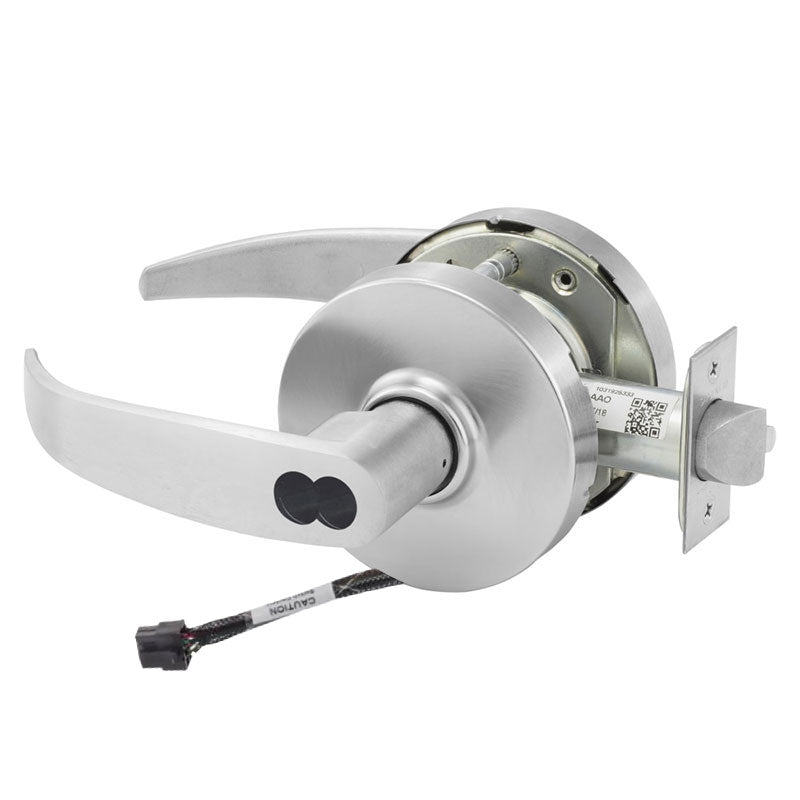

Sargent 70-RX-10XG05-LP-24V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, P Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG05-LP-24V is a Grade 1 cylindrical lever lock built for entrance and office applications where controlled access and reliable monitoring are essential. Part of Sargent's 10X Line, this lock features an integrated Request to Exit (RX) switch that signals egress activity to access control or alarm systems. It comes with the LP lever design and L rose, a 2-3/4" backset, and a 4-7/8" strike. Configured for a small format interchangeable core and furnished less core, it lets you match the lock to your existing keying system. The 24V wiring supports low-voltage electrified integration for secure commercial openings.

Features

• Grade 1 cylindrical lever lock rated for heavy-duty commercial use.
• Entrance or office function provides key-controlled locking with inside operation freedom.
• Integrated Request to Exit (RX) switch monitors egress and reports to access control systems.
• LP lever and L rose combination for a clean, durable trim design.
• Small format interchangeable core (SFIC) prep, furnished less core for keying flexibility.
• Standard 2-3/4" backset with a 4-7/8" ANSI strike.
• 24V low-voltage operation for electrified system integration.

Functional Details

The entrance or office function allows the outside lever to be locked or unlocked by key, while the inside lever always retracts the latch for free egress. The Request to Exit switch detects lever movement and sends a signal to connected security or access control equipment.

• Latchbolt operated by lever from either side except when outside lever is locked by key.
• Auxiliary latch deadlocks latchbolt when door is closed.
• Inside lever always free for immediate egress.
