| Device Type | Trim |
| Handed | Yes |
| Electric Options | Fail-Secure |
| Trim Type | Electrified Lever |
| Trim Design | MG - Lever |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Exit Device Trim |
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Unit of Measure | Each |
| Application | For 8400 and 8600 Series Concealed Vertical Rod Exit Devices |
| Base Material | Brass |
| ADA | Yes |

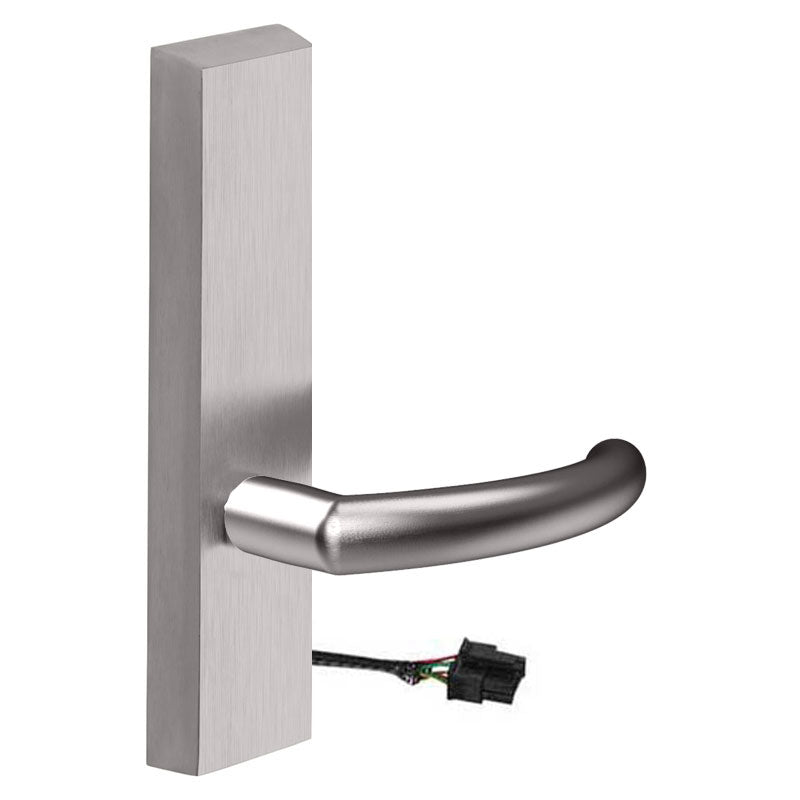

The Sargent 774-4-ETMG-24V Electrified Exit Device Trim is 24 volt, comes with an MG Lever, a Fail-Secure Power Off, Locks Lever (No Cylinder) function and is field reversible for Sargent's 8400 and 8600 Series Concealed Vertical Rod Exit Devices. Available in US26D Satin Chrome and US10B Oxidized Dull Bronze.
This Trim Works With:
Electrified ET Trim Voltage Specify: 24 VDC
| Function Number | Description & Cylinder Info(1-3/4" Door) | ANSI Type 1 8800 Panic |
| 74 | Electrified ET Trim - Fail Secure Power Off, Locks Lever (No Cylinder) |
8874 x ET_ |
