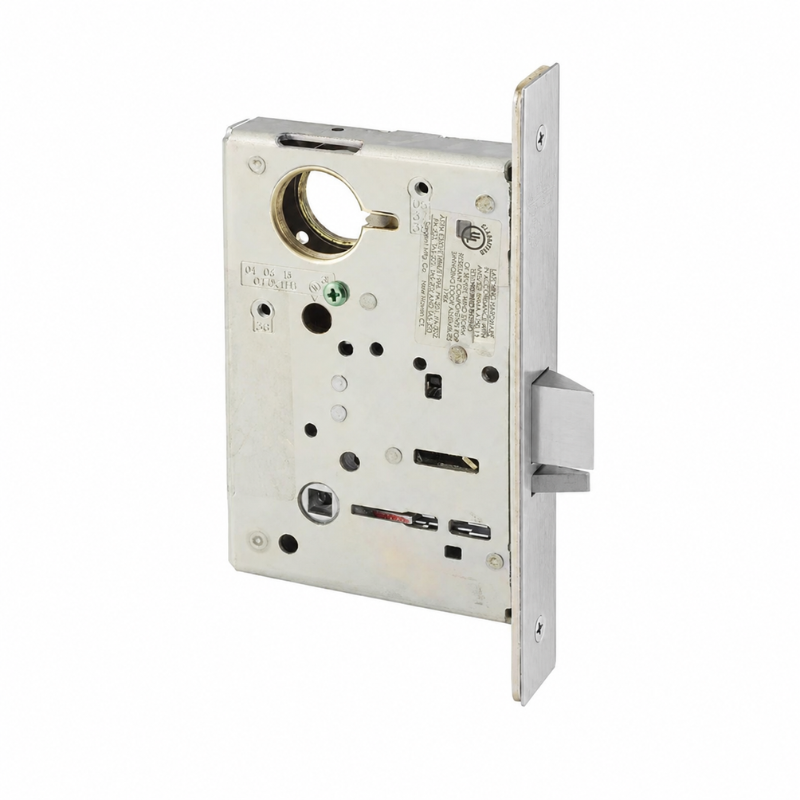

Sargent 8205 Mortise Lock, Lock Body Only, Office or Entry Function, Single Cylinder

  • SKU: 8205US26D
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$421.61/ea
0% Net 30 Days: Apply Now
Finish: US26D-626 Satin Chrome

Sargent 8205 Office or Entry Mortise Lock, Lock Body Only, Outside Lever Locked by Inside Thumbturn, Key Retracts Latch, Grade 1, Field Reversible

Features

  • Office or Entry function with single cylinder operation for controlled access.
  • Grade 1 rating built for demanding commercial and institutional use.
  • Field reversible design simplifies installation and handing adjustments.
  • Sold as a lock body only for pairing with your preferred trim and cylinder.
  • Heavy-duty mortise construction for extended durability under heavy traffic.

Functional Details

The 8205 Office or Entry function allows the door to be locked or unlocked from the outside using a key, while the inside lever always retains free egress. This provides secure control at the exterior with unrestricted exit for occupant safety.

  • Latchbolt operated by lever from either side except when outside lever is locked by key.
  • Outside lever locked and unlocked by key.
  • Auxiliary latch deadlocks latchbolt when door is closed.
  • Inside lever always free for immediate egress.
Manufacturer Sargent
SKU 8205
Product Type Mortise Lock, Lock Body Only
Function Office or Entry, Single Cylinder
Grade Grade 1
Handing Field Reversible
Origin Made in USA
Unit of Measure Each
UL Listing Type UL Listed for 3-Hour Fire Door
ANSI Number F04 (ANSI/BHMA A156.13)
BAA Qualified Yes
Limited Warranty Yes
Series 8200 Series Mortise Lock
Backset 2-3/4 in.
Latchbolt Throw 3/4 in.
Deadbolt Throw 1 in.
Case Depth 4 in.
Case Height 6 in.
Case Thickness 1 in.
Faceplate Size 1-1/4 in. x 8 in.
Door Thickness Range 1-3/4 in. standard
Cylinder Single Cylinder, 6-pin standard
Auxiliary Latch Deadlocking, included
Product Cut Sheet

Cylinder Mortise Handing Chart
