Sargent 8215-BHW-US32D Behavioral Health Mortise Lock, Passage or Closet Function, BHW Trim, Non-Keyed, Satin Stainless Steel

  • SKU: 8215BHWUS32DLH
$1,590.28/ea
Available (2 Weeks)
2 Weeks Lead Time
Handing: LH - Left Hand

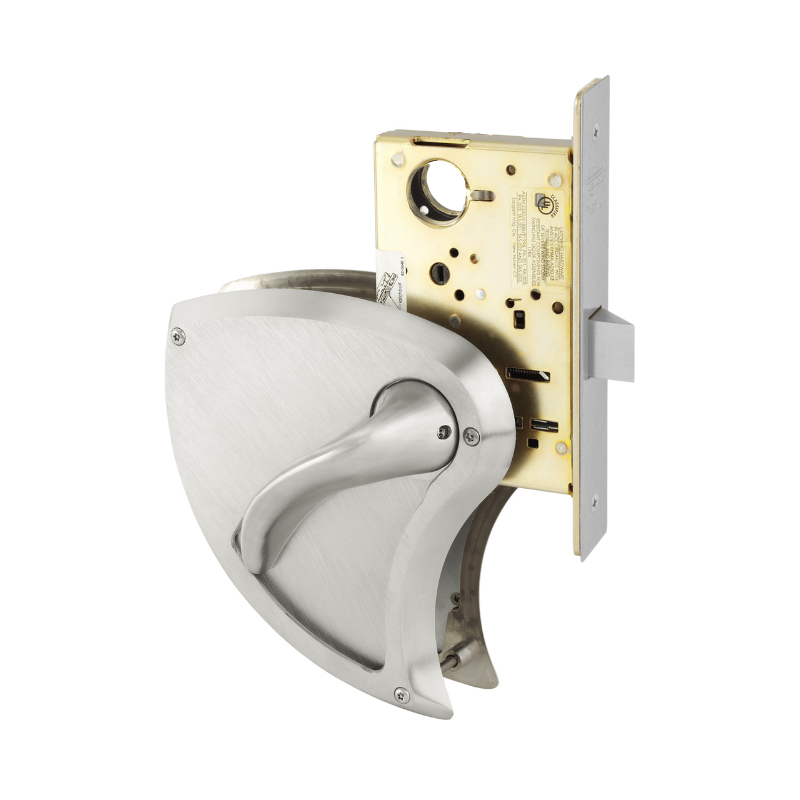

Sargent 8215-BHW-US32D Behavioral Health Passage or Closet Mortise Lock, BHW Trim, Non-Keyed, Grade 1, Field Reversible, 630 Satin Stainless Steel

Sargent 8215-BHW-US32D Behavioral Health Mortise Lock, suitable for passage or closet use, features BHW trim and a non-keyed design. This Grade 1 lock is field reversible and finished in satin stainless steel (US32D).

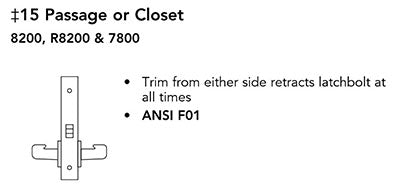

  • Passage or Closet Function:
    • Trim from either side retracts latchbolt at all times
  • Uses standard mortise prep
  • Less Cylinder
  • ANSI/BHMA Grade 1
  • Tapered surfaces on all components
  • Handed
  • ADA Compliant
  • 6 Lobe head security screws (Torx® type)
Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
Application Ligature Resistant
Base Material Stainless Steel
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}

Function 15 Passage or Closet Function
Lever/Knob Design BHW Lever
Cylinder Type Non-Keyed
Handing Field Reversible
Door Thickness 1-3/4"
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4"
Lock Face Size 8" x 1-1/4"
Bolt Projection 3/4" Latch
Std. Strike Number 82-0110
Std. Strike Type ASA
Std. Strike Height 4-7/8"
Std. Strike Width 1-1/4"
Screws Combination
Product Type Mortise Lock
Product Cut Sheet

Cylinder Mortise Handing Chart
