Sargent 8215 Mortise Lock, Lock Body Only, Passage or Closet Function

  • SKU: 8215US26D

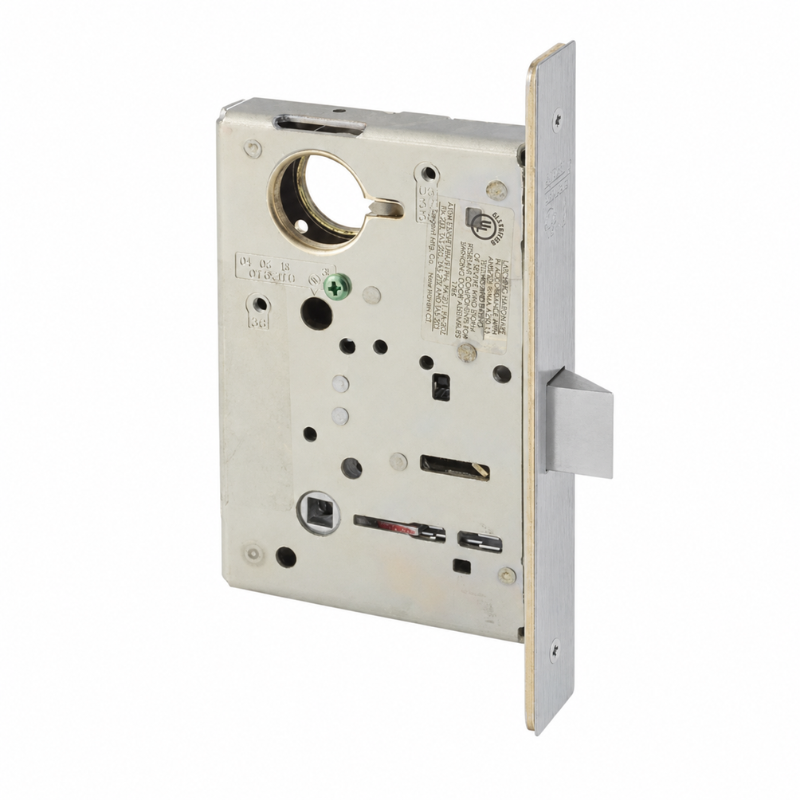

Sargent 8215 US26D satin chrome mortise lock body only, passage or closet function with faceplate and latch
Sargent 8215 US26D satin chrome mortise lock body only, passage or closet function with faceplate and latch
Sargent 8215 Mortise Lock, Lock Body Only, Passage or Closet Function
Sargent 8215 US26 passage/closet mortise lock body only in bright chrome finish with latch and faceplate
Sargent 8215 US10B mortise lock body only, oil-rubbed bronze faceplate, passage/closet function with latch bolt
Sargent 8215 US10BE oil-rubbed bronze mortise lock body only, passage/closet function with latch and faceplate
Sargent 8215 US15 satin nickel mortise lock body, passage/closet function, exposed internal mechanism and latch
Sargent 8215 US32D satin stainless mortise lock body only, passage/closet function with latch bolt and faceplate
Sargent 8215 mortise lock body only, passage/closet function, BSP black suede powder coat faceplate
Zoomed view
All SARGENT Products

Sargent 8215 Mortise Lock, Lock Body Only, Passage or Closet Function

  • SKU: 8215US26D
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$352.48/ea
0% Net 30 Days: Apply Now
Finish: US26D-626 Satin Chrome

Sargent 8215 Passage or Closet Mortise Lock, Lock Body Only, Latch by Lever Either Side, Grade 1, Field Reversible

Features

  • Passage or closet function with both levers always active for free operation.
  • Lock body only, allowing you to specify trim and finish separately.
  • Field reversible design accommodates right- and left-hand doors without extra parts.
  • Grade 1 construction meets the demands of heavy commercial use.
  • Part of the Sargent 8200 Series mortise lock platform for wide compatibility.

Functional Details

In the passage or closet configuration, the latchbolt is retracted by turning either the inside or outside lever, and the door is never locked. This provides continuous free passage in both directions.

  • Latchbolt operated by lever from either side at all times.
  • No locking function; both levers always free.
Manufacturer Sargent
SKU 8215
Series 8200 Mortise Lock Series
Function Passage or Closet
Grade ANSI/BHMA Grade 1
ANSI Number A156.13
Handing Field Reversible
Configuration Lock Body Only
Origin Made in USA
Unit of Measure Each
UL Listing Type UL Listed for 3-hour fire door
BAA Qualified Yes
Limited Warranty Yes
Backset 2-3/4"
Latchbolt Throw 3/4"
Door Thickness 1-3/4" standard (thicker available)
Face Plate 1-1/4" x 8"
Face Plate Options Beveled or flat, armored front
Latchbolt Material Stainless steel
Strike ANSI curved lip strike included
Case Depth Standard 8200 Series mortise case
Cross Bore Not required (mortise cavity)
Hand Reversible without disassembly
Product Cut Sheet

Cylinder Mortise Handing Chart
