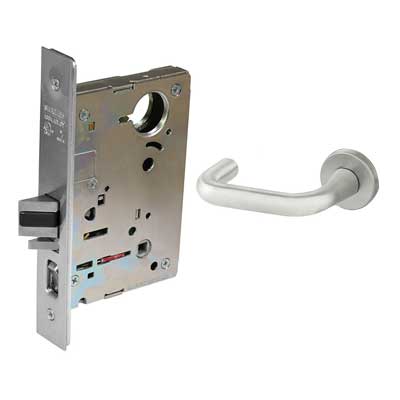

Sargent 8225-LNJ-26D Dormitory or Exit Function Mortise Lock, LA Keyway, LN Rose, J Lever, Field Reversible, Satin Chrome

  • SKU: 8225LNJ26D
Sargent 8225-LNJ-26D Dormitory or Exit Function Mortise Lock
Sargent 8225-LNJ-26D Dormitory or Exit Function Mortise Lock
All SARGENT Products

Sargent 8225-LNJ-26D Dormitory or Exit Function Mortise Lock, LA Keyway, LN Rose, J Lever, Field Reversible, Satin Chrome

  • SKU: 8225LNJ26D
$690.20/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Handing Guide:
handing chart image

The Sargent 8225-LNJ-26D Dormitory, or Exit Function Mortise Lock comes LA Keyway Standard with an LN Rose, a J Lever, is Field Reversible and in a Satin Chrome Finish.

The 8200 series mortise locks are ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.

Manufacturer Sargent
Grade Grade 1
Origin USA
Unit of Measure Each
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}
Function 25 Dormitory
ANSI Function F13 - Dormitory
Lever/Knob Design J - Lever
Rose/Escutcheon Design LN - Rose
Cylinder Type Conventional Cylinder
Num Pins 6
Std. Keyway LA
Keying Keyed Different
Key(s) Cut
Num of Keys 2
Handing Field Reversible
Door Thickness 1-3/4 In.
Std. Latch Type Combination Latch and Bolt
Std. Latch Backset Dim 2-3/4 In.
Lock Face Size 8 In. x 1-1/4 In.
Bolt Projection 3/4 In. Latch, 1 in. Deadbolt
Std. Strike Number 82-0110
Std. Strike Type ASA Strike
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Combination
Product Type Mortise Lock
Product Cut Sheet

Cylinder Mortise Handing Chart
