Sargent 8225 Mortise Lock, Lock Body Only, Dormitory or Exit Function

  • SKU: 8225US26D

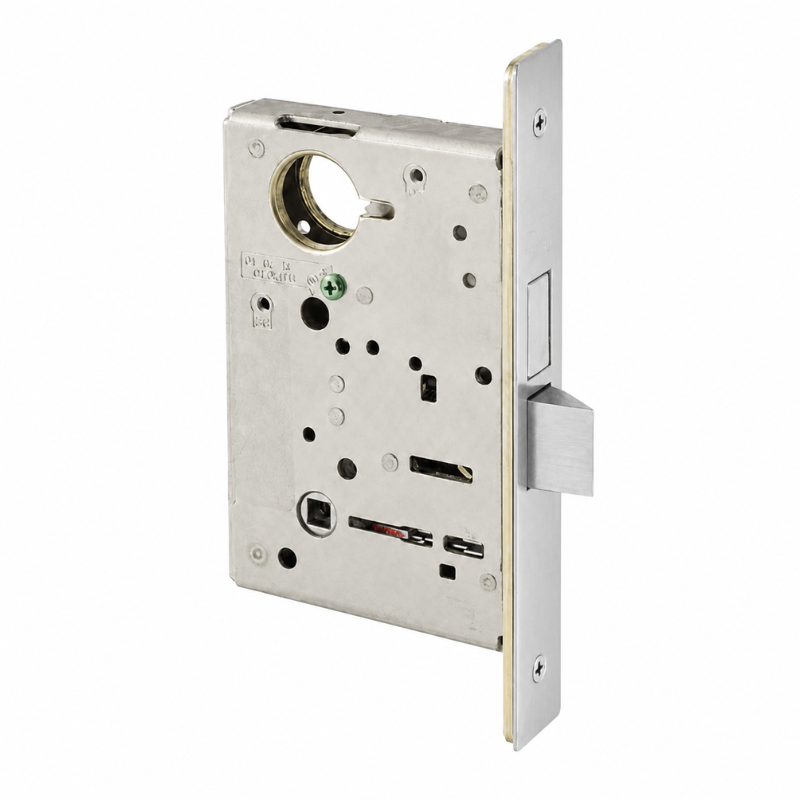

Sargent 8225 US26D satin chrome mortise lock body only, dormitory/exit function with faceplate and latch bolt
Sargent 8225 US26D satin chrome mortise lock body only, dormitory/exit function with faceplate and latch bolt
Sargent 8225 mortise lock body only, dormitory/exit function, single cylinder without deadbolt diagram
Sargent 8225 US26 mortise lock body only, bright chrome finish, dormitory/exit function with faceplate and latch
Sargent 8225 US10B oil-rubbed bronze mortise lock body only, dormitory/exit function with latch and faceplate
Sargent 8225 US10BE dormitory/exit mortise lock body with dark oxidized bronze faceplate and latch bolt
Sargent 8225 US15 mortise lock body only, satin nickel, dormitory/exit function with latch and faceplate
Sargent 8225 US32D satin stainless mortise lock body, dormitory/exit function with faceplate and latch
Sargent 8225 BSP mortise lock body, dormitory/exit function, black faceplate with satin chrome latch
Zoomed view
All SARGENT Products

Sargent 8225 Mortise Lock, Lock Body Only, Dormitory or Exit Function

  • SKU: 8225US26D
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$445.89/ea
0% Net 30 Days: Apply Now
Finish: US26D-626 Satin Chrome

Sargent 8225 Dormitory or Exit Mortise Lock, Lock Body Only, Deadbolt by Key Outside or Thumbturn Inside, Inside Lever Retracts Both, Grade 1, Field Reversible

Features

  • Grade 1 mortise lock body engineered for high-frequency commercial and institutional use.
  • Dormitory or exit function supports secure entry with free egress from the inside.
  • Field reversible for left-hand and right-hand doors without special ordering.
  • Sold as a lock body only for flexible trim and cylinder pairing.
  • Part of Sargent's proven 8200 Series mortise lock line.

Functional Details

The 8225 dormitory or exit function provides latching operation controlled by the inside and outside levers, allowing secure entry while maintaining unobstructed egress from within.

  • Latchbolt operated by lever from either side except when outside lever is locked by key outside.
  • Auxiliary latch deadlocks latchbolt when door is closed.
  • Outside lever locked and unlocked by key.
  • Inside lever always free for immediate egress.
Manufacturer Sargent
SKU 8225
Grade Grade 1
Function Dormitory or Exit
Configuration Lock Body Only
Handing Field Reversible
Series 8200 Series
Origin USA
Unit of Measure Each
ANSI Number A156.13
BAA Qualified Yes
Limited Warranty Yes
Backset 2-3/4"
Lock Case Depth 4"
Lock Case Height 6"
Latchbolt Throw 3/4"
Faceplate Size 1-1/4" x 8"
Faceplate Type Armored front, beveled
Door Thickness Range 1-3/4" standard
Strike Type ANSI curved lip strike
Auxiliary Latch Throw 3/16"
Cylinder Type Mortise cylinder
ANSI/BHMA Grade Grade 1
