Sargent 8237-LNP-26D Classroom Function Mortise Lock, LA Keyway, LN Rose, P Lever, Satin Chrome

  • SKU: 8237LNP26DLH
Sargent 8237-LNP-26D Classroom Function Mortise Lock
All SARGENT Products

Sargent 8237-LNP-26D Classroom Function Mortise Lock, LA Keyway, LN Rose, P Lever, Satin Chrome

  • SKU: 8237LNP26DLH
  • ✓
    Available (1‑2 Weeks)
    1-2 Weeks Lead Time
Your Price
$752.24/ea
Handing: LH - Left Hand
Handing Guide:
handing chart image

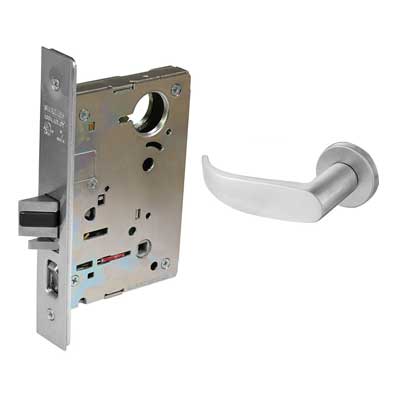

The Sargent 8237 LNP 26D Classroom Function Mortise Lock comes LA Keyway Standard with an LN Rose and a P Lever in a Satin Chrome Finish.

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high-quality components to provide maximum security, performance, and durability.

Manufacturer Sargent
Grade Grade 1
Origin USA
Unit of Measure Each
Application Complete Lock
Base Material Brass or Bronze
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}
Function 37 Classroom
ANSI Function F05 - Classroom
Lever/Knob Design P - Lever
Rose/Escutcheon Design LN - Rose
Cylinder Type Conventional Cylinder
Num Pins 6
Std. Keyway LA
Keying Keyed Different
Key(s) Cut
Num of Keys 2
Handing Field Reversible
Door Thickness 1-3/4 In.
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4 In.
Lock Face Size 8 In. x 1-1/4 In.
Bolt Projection 3/4 In. Latch
Std. Strike Number 82-0110
Std. Strike Type ASA Strike
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Combination
Product Type Mortise Lock
Product Cut Sheet

Cylinder Mortise Handing Chart
