All SARGENT Products

Sargent 8237 Mortise Lock, Lock Body Only, Classroom Mortise Lock

  • SKU: 8237US26D

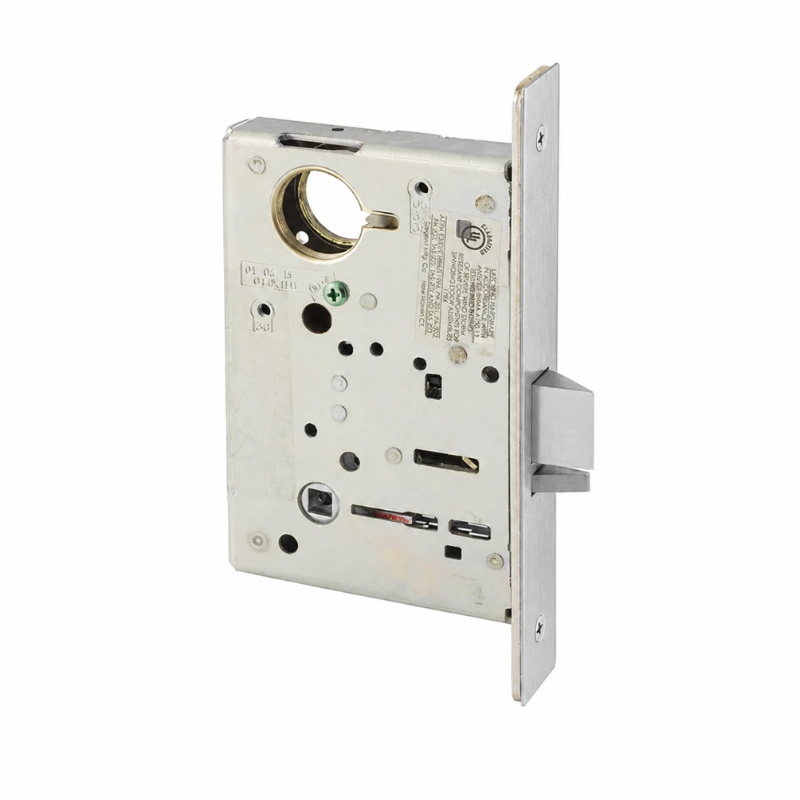

Sargent 8237-US26D Mortise Lock, Lock Body Only, Classroom Mortise Lock by Sargent Manufacturing Company
Sargent 8237-US26D Mortise Lock, Lock Body Only, Classroom Mortise Lock by Sargent Manufacturing Company
Sargent 8237 Mortise Lock, Lock Body Only, Classroom Mortise Lock
Sargent 8237-US32D Mortise Lock, Lock Body Only, Classroom Mortise Lock by Sargent Manufacturing Company
Sargent 8237-BSP Mortise Lock, Lock Body Only, Classroom Mortise Lock
Sargent 8237-US10B Mortise Lock, Lock Body Only, Classroom Mortise Lock
Sargent 8237 US15 Mortise Lock, Lock Body Only, Classroom Mortise Lock by Sargent Manufacturing Company
Sargent 8237 US26 Mortise Lock, Lock Body Only, Classroom Mortise Lock by Sargent Manufacturing Company
Zoomed view
All SARGENT Products

Sargent 8237 Mortise Lock, Lock Body Only, Classroom Mortise Lock

  • SKU: 8237US26D
  • ✓
    Ships in (2 Weeks)
    2 Weeks Lead Time
Your Price
$421.61/ea
0% Net 30 Days: Apply Now
Finish: US26D-626 Satin Chrome

Sargent 8237 Classroom Mortise Lock, Lock Body Only, Outside Lever Locked or Unlocked by Key, Inside Lever Always Free, Grade 1, Field Reversible

Features

  • Grade 1 mortise lock body engineered for heavy-duty commercial use.
  • Classroom function allows the outside lever to be locked or unlocked by key.
  • Inside lever is always free for immediate, code-compliant egress.
  • Field reversible design accommodates both handings without extra parts.
  • Supplied as a lock body only for flexible pairing with preferred trim.

Functional Details

The 8237 classroom function provides controlled access from the outside while maintaining safe egress from within. A key on the outside retracts the latch when locked, and the inside lever always retracts the latch.

  • Latchbolt operated by lever from either side except when outside lever is locked by key.
  • Outside lever locked and unlocked by key.
  • Inside lever always free.
  • Auxiliary latch deadlocks latchbolt when door is closed.
Manufacturer SARGENT
SKU 8237
Product Type Classroom Mortise Lock, Lock Body Only
Grade Grade 1
Function Classroom
Handing Field Reversible
Origin Made in USA
Unit of Measure Each
UL Listing Type UL/cUL Listed for 3-Hour Fire Door
ANSI Number ANSI/BHMA A156.13
BAA Qualified Yes
Limited Warranty Yes
Series 7800/8200 Series
Backset 2-3/4"
Case Depth 4-1/8"
Case Height 6"
Case Thickness 15/16"
Latchbolt Throw 3/4"
Deadbolt Throw 1"
Faceplate Size 1-1/4" x 8"
Door Thickness Range 1-3/4" standard
Strike ANSI curved lip strike
Cylinder Standard 1-1/8" mortise cylinder
Product Cut Sheet

Cylinder Mortise Handing Chart
