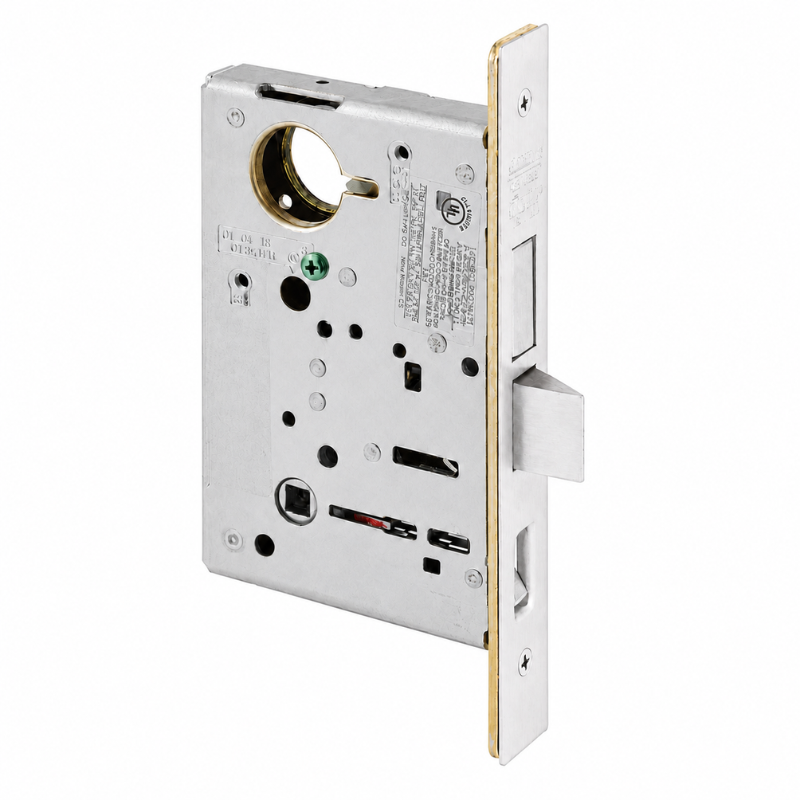

Sargent 8245 Mortise Lock, Lock Body Only, Dormitory or Exit Function, Single Cylinder with Deadbolt, Grade 1, Field Reversible

The Sargent 8245 Mortise Lock delivers dependable Grade 1 security for high-traffic commercial openings such as dormitories, apartments, and other applications requiring controlled entry with a positive deadbolt. This lock body-only configuration provides the dormitory or exit function with a single cylinder and deadbolt, allowing the outside to be locked or unlocked by key while permitting free egress from the inside. Built to meet ANSI/BHMA A156.13 standards and part of Sargent's proven 8200 Series, the 8245 is field reversible for installation flexibility and engineered for years of reliable service. It's an ideal solution for institutional and multi-residential facilities that demand durability and code compliance.

Features

• Dormitory or exit function with single cylinder and deadbolt for secure, controlled access.
• Grade 1 rated construction built for demanding commercial and institutional environments.
• Field reversible design simplifies handing during installation.
• Lock body only, allowing you to pair with your preferred trim, cylinders, and finish.
• Part of the durable Sargent 8200 Series mortise lock platform.

Functional Details

The 8245 dormitory/exit function allows the outside lever or knob to be locked and unlocked by key, while the deadbolt is thrown and retracted by key from the outside or by turn unit from the inside. Rotating the inside lever retracts both the latchbolt and deadbolt simultaneously for immediate free egress at all times.

• Deadbolt thrown or retracted by key outside or thumbturn inside.
• Latchbolt operated by lever from either side except when outside is locked by key.
• Inside lever always free for immediate egress, retracting both latchbolt and deadbolt.

Included Components

This model ships as a lock body only. Cylinders, trim, roses, levers or knobs, and strikes are ordered separately to match your specification and finish requirements.
